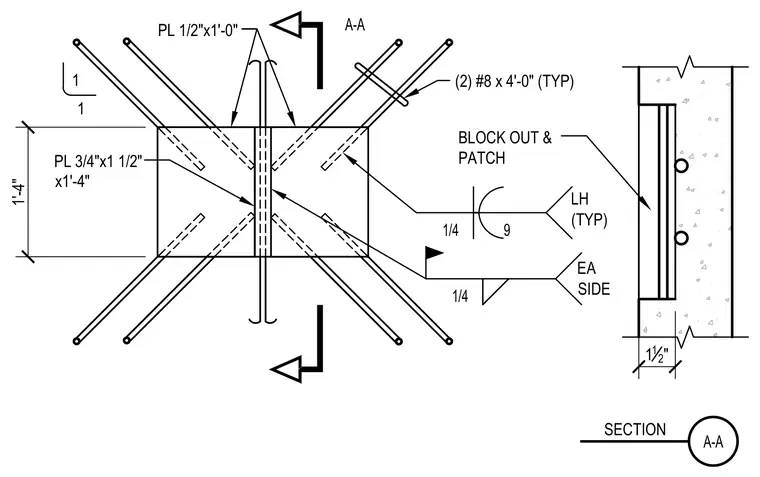

Two adjacent precast concrete panels are tied together using embedded steel plates and diagonal reinforcing bars. The connection incorporates a three-quarter-inch by one-and-a-half-inch by one-foot-four-inch plate welded with quarter-inch fillet welds on each side, alongside half-inch by one-foot plates. Two number eight reinforcing bars measuring four feet in length extend diagonally from each panel corner into the connection zone as typical embedment. A blockout and patch detail with a one-and-a-half-inch recess accommodates the joint hardware.
1 12 " 1'-4" LH (TYP) EA SIDE 1/4 1/4 9 A-A A-A SECTION 1 1 PL 3/4"x1 1/2" x1'-4" PL 1/2"x1'-0" (2) #8 x 4'-0" (TYP) BLOCK OUT & PATCH
