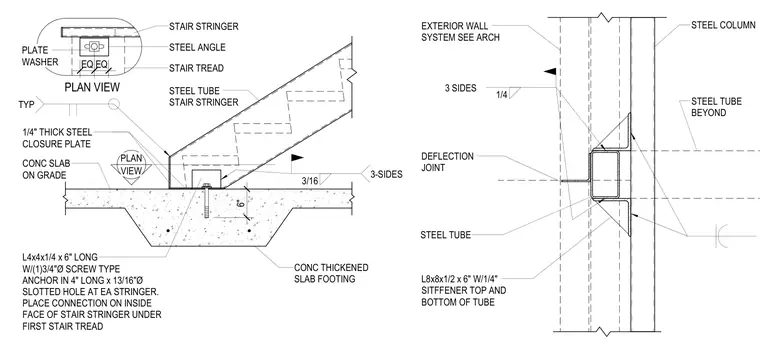

The steel tube stair stringer bears on a concrete slab on grade with a thickened footing, anchored via an L4x4x1/4 by six-inch long steel angle on the inside face beneath the first stair tread. A three-quarter-inch diameter screw type anchor secures the angle through a four-inch long by thirteen-sixteenths-inch diameter slotted hole at each stringer, complete with a plate washer and a quarter-inch thick steel closure plate. Separately, a structural steel tube connects to a steel column through an L8x8x1/2 by six-inch angle featuring a quarter-inch stiffener at the top and bottom of the tube, welded with three-sixteenths and quarter-inch fillet welds on three sides.
L4x4x1/4 x 6" LONG W/(1)3/4"Ø SCREW TYPE ANCHOR IN 4" LONG x 13/16"Ø SLOTTED HOLE AT EA STRINGER. PLACE CONNECTION ON INSIDE FACE OF STAIR STRINGER UNDER FIRST STAIR TREAD CONC SLAB ON GRADE CONC THICKENED SLAB FOOTING TYP STAIR STRINGER STAIR TREAD PLAN VIEW EQ EQ 6" STEEL ANGLE VIEW PLAN STEEL TUBE STAIR STRINGER 1/4" THICK STEEL CLOSURE PLATE 3/16 3-SIDES PLATE WASHER STEEL COLUMN EXTERIOR WALL SYSTEM SEE ARCH DEFLECTION JOINT STEEL TUBE STEEL TUBE BEYOND 1/4 3 SIDES L8x8x1/2 x 6" W/1/4" SITFFENER TOP AND BOTTOM OF TUBE
