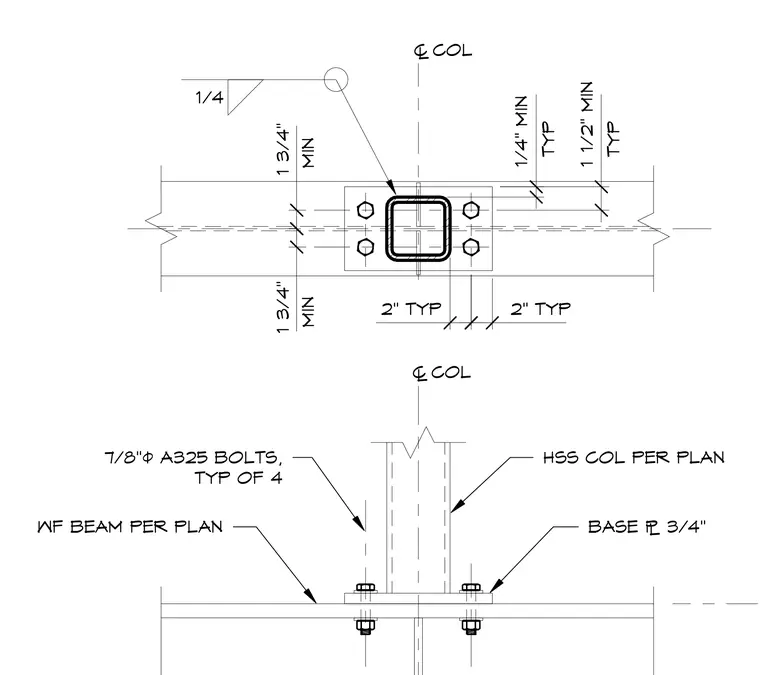

A hollow structural section column attaches to a wide flange beam sized per plan using a three-quarter-inch thick base plate. The assembly is secured with four seven-eighth-inch diameter A325 bolts arranged typically. Fillet welds of one-quarter-inch size connect the column to the base plate according to specified minimum clearances and dimensions.
1/4" MIN 1 3/4" 2" TYP 2" TYP 1 1/2" MIN ® COL HSS COL PER PLAN BASE ¯ 3/4" WF BEAM PER PLAN 7/8"ø A325 BOLTS, TYP OF 4 MIN MIN TYP TYP ® COL 1 3/4" 1/4
