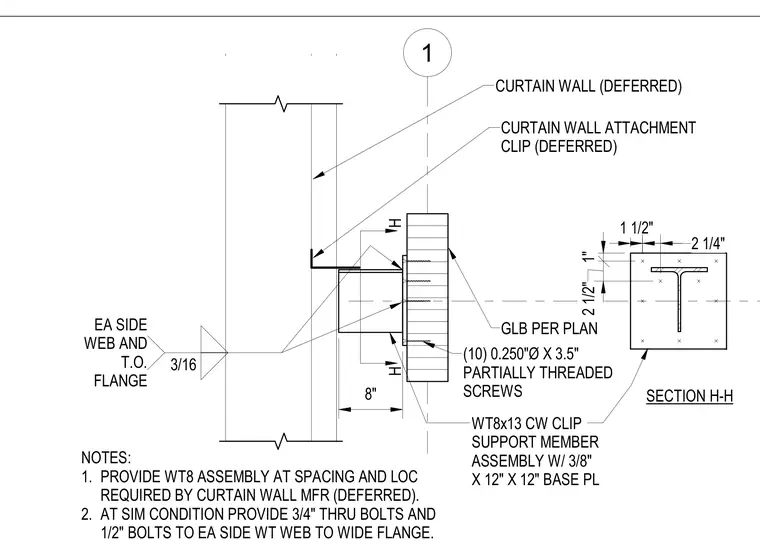

A WT8x13 curtain wall clip support member assembly is anchored using a three-eighth-inch by twelve-inch by twelve-inch base plate secured with ten quarter-inch diameter by three-and-a-half-inch partially threaded screws. The WT shape connects to the framing with a three-sixteenth-inch fillet weld at each side of the web and top of the flange. A deferred curtain wall attachment clip interfaces with the structural support member as required by the manufacturer.
H H GLB PER PLAN CURTAIN WALL (DEFERRED) CURTAIN WALL ATTACHMENT CLIP (DEFERRED) WT8x13 CW CLIP SUPPORT MEMBER ASSEMBLY W/ 3/8" X 12" X 12" BASE PL 8" 1 3/16 EA SIDE WEB AND T.O. FLANGE 1 1/2" 2 1/2" 1" (10) 0.250"Ø X 3.5" PARTIALLY THREADED SCREWS SECTION H-H NOTES: 1. PROVIDE WT8 ASSEMBLY AT SPACING AND LOC REQUIRED BY CURTAIN WALL MFR (DEFERRED). 2. AT SIM CONDITION PROVIDE 3/4" THRU BOLTS AND 1/2" BOLTS TO EA SIDE WT WEB TO WIDE FLANGE. 2 1/4"
