Structural · S-SWFAZ

Wide Flange Beam Bracing Connection at Metal Deck

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Roofs Floors / Slabs Decks Bracing Connections / Plates

Connections

Bracing Connection Shear Stud / Composite

About this detail

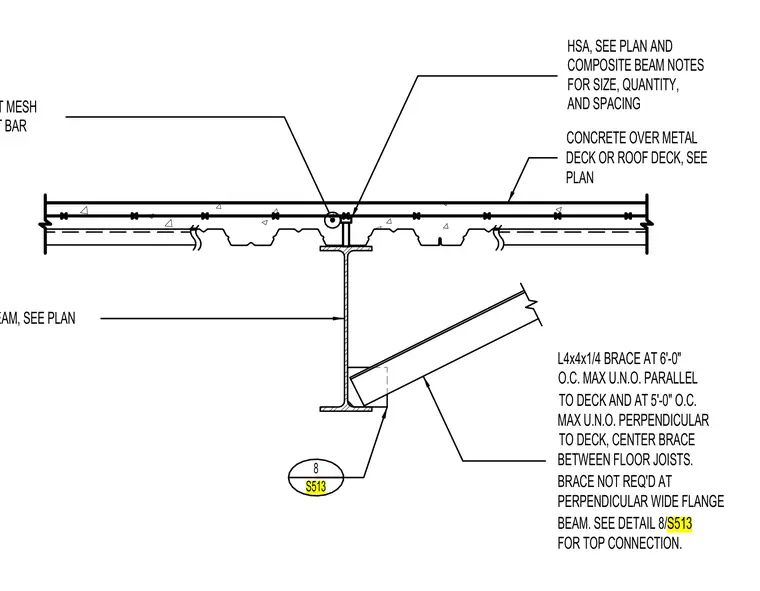

An L4x4x1/4 angle brace frames into the bottom flange of a steel wide-flange beam, positioned at a maximum spacing of six feet on center parallel to the deck and five feet on center perpendicular to the deck. The angle brace is centered between floor joists and left unrequired at perpendicular wide-flange beams. Above, a concrete slab sits over a metal deck or roof deck, reinforced with a continuous mesh support bar and headed shear stud anchors sized per structural plans. A related top connection detail is referenced on sheet S513.
