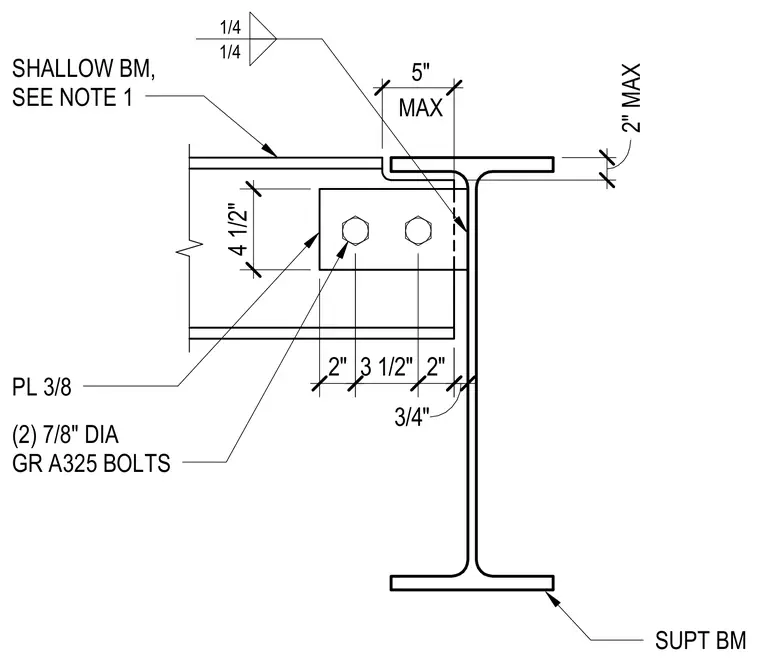

A shallow structural steel beam frames into the web of a supporting steel beam using a 3/8-inch plate welded to the support with a 1/4-inch fillet weld. The shallow beam web connects to the plate with two 7/8-inch diameter Group A325 bolts spaced at 3-1/2 inches on center. A maximum 2-inch clearance is maintained at the top flange relative to the supporting beam.
3 1/2" 2" PL 3/8 SUPT BM (2) 7/8" DIA GR A325 BOLTS SHALLOW BM, SEE NOTE 1 1/4 1/4 3/4" 4 1/2" 2" 4" 1 1/4" 2" MAX 5" MAX
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
