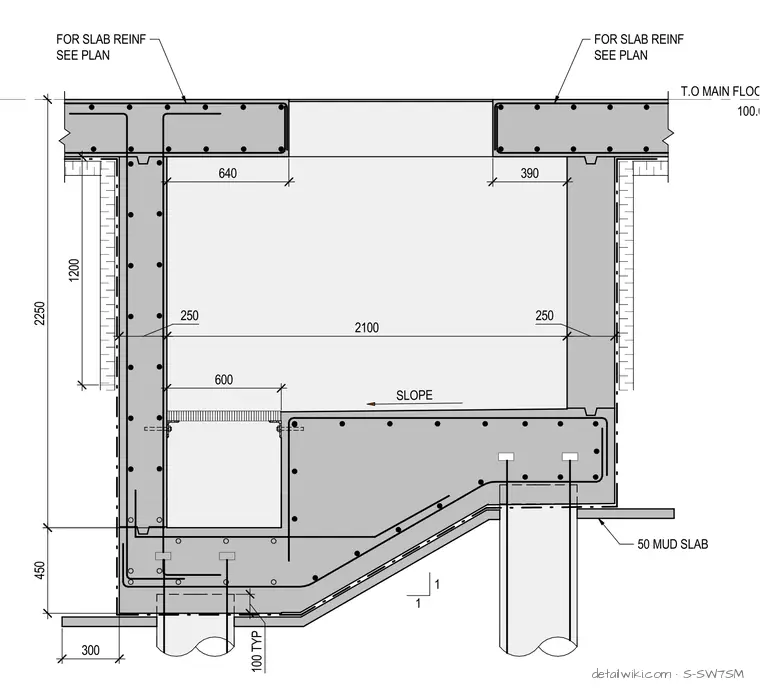

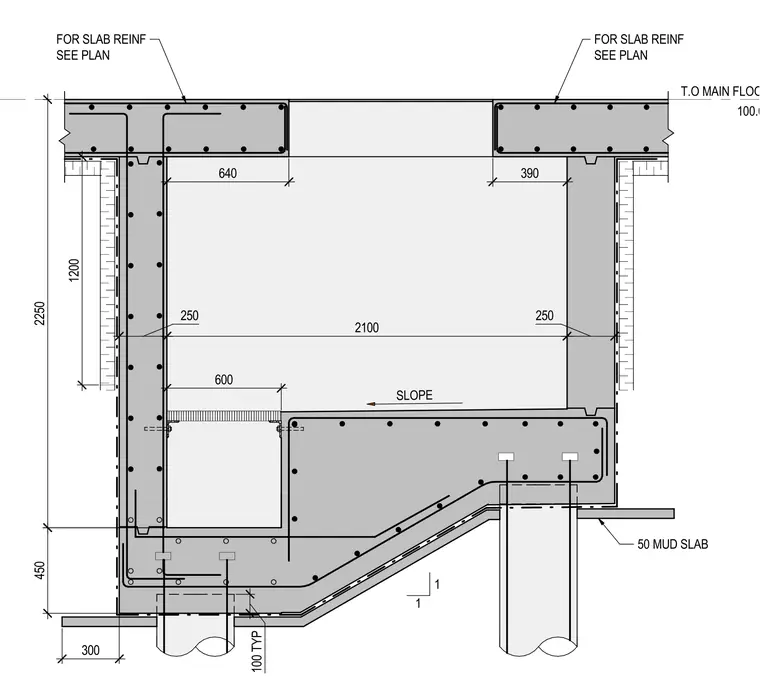

A reinforced concrete foundation pit has a main floor elevation set at 100.00 and a sloped bottom slab. The assembly rests on a 50 mm mud slab poured over supporting piers or piles. The vertical walls feature a thickness of 250 mm, with interior clear dimensions of 2100 mm across, 1200 mm in height, and a bottom sump area indicated by a 600 mm dimension. Slab reinforcement is specified to be per plan, with typical clearances and dimensions marked throughout the section.
SLOPE T.O MAIN FLOOR 100.00 250 390 1 1 50 MUD SLAB FOR SLAB REINF SEE PLAN FOR SLAB REINF SEE PLAN 1200 450 300 100 TYP 2100 250 600 640 2250
