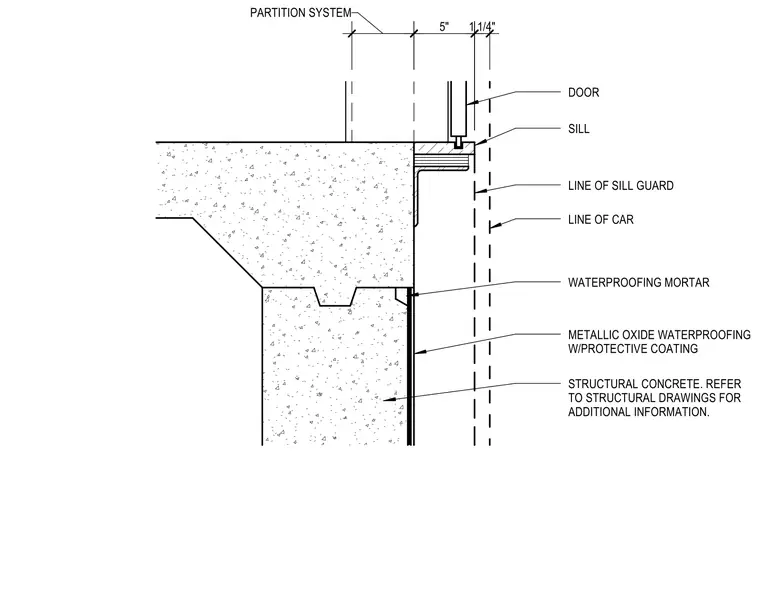

An elevator sill sits atop a structural concrete pit wall adjacent to a partition system and door. The assembly incorporates a door sill with a sill guard aligning with the elevator car. Waterproofing mortar and metallic oxide waterproofing with protective coating are applied along the concrete surfaces.
METALLIC OXIDE WATERPROOFING W/PROTECTIVE COATING LINE OF CAR STRUCTURAL CONCRETE. REFER TO STRUCTURAL DRAWINGS FOR ADDITIONAL INFORMATION. WATERPROOFING MORTAR DOOR SILL LINE OF SILL GUARD 1 1/4" PARTITION SYSTEM 5"
