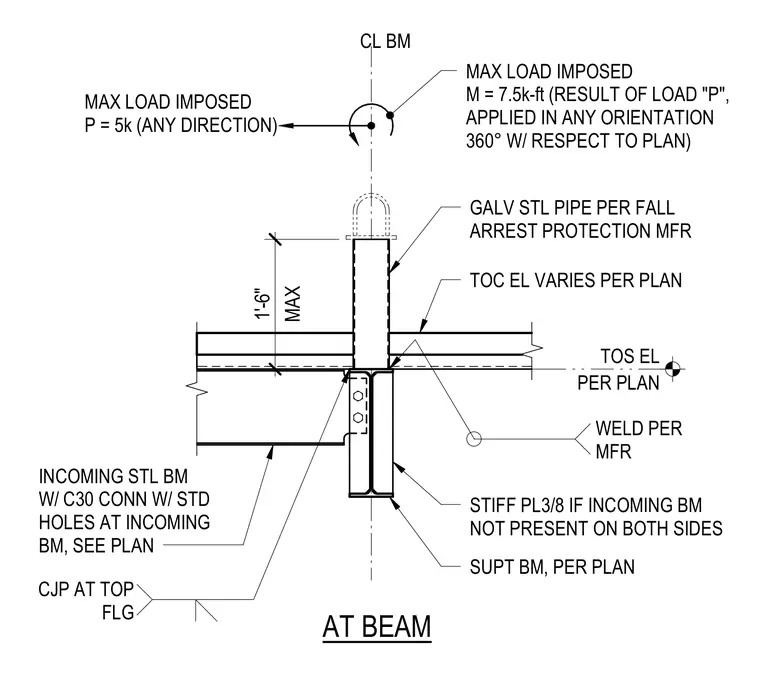

A galvanized steel pipe for fall arrest protection is mounted to a supporting steel beam with top of steel elevation varying per plan. A three-eighths inch stiffener plate is provided if the incoming steel beam is not present on both sides of the supporting beam. The incoming steel beam features a C30 connection with standard holes. A complete joint penetration weld is specified at the top flange, and welds follow manufacturer recommendations. The maximum imposed load is five kips in any direction with a maximum moment of 7.5 kip-feet.
PER PLAN TOS EL AT BEAM MAX LOAD IMPOSED P = 5k (ANY DIRECTION) CL BM MAX LOAD IMPOSED M = 7.5k-ft (RESULT OF LOAD "P", APPLIED IN ANY ORIENTATION 360° W/ RESPECT TO PLAN) GALV STL PIPE PER FALL ARREST PROTECTION MFR TOC EL VARIES PER PLAN WELD PER MFR STIFF PL3/8 IF INCOMING BM NOT PRESENT ON BOTH SIDES SUPT BM, PER PLAN INCOMING STL BM W/ C30 CONN W/ STD HOLES AT INCOMING BM, SEE PLAN CJP AT TOP FLG MAX 1'-6"
