Structural · S-SW3KF

Fastening Pattern for Metal Deck

Materials

Steel Timber / Wood Metal (misc.)

Elements

Beams Decks

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

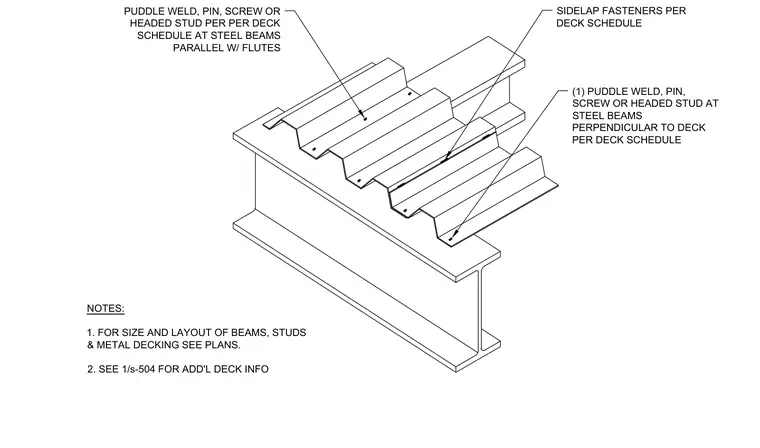

Metal decking is supported by structural steel beams with specific fastener configurations for parallel and perpendicular alignments. Puddle welds, pins, screws, or headed studs secure the metal deck to the steel beams per the deck schedule. Sidelap fasteners connect adjacent deck panels along the flutes. Beam sizes, stud layouts, and decking specifications are coordinated per the structural plans.
