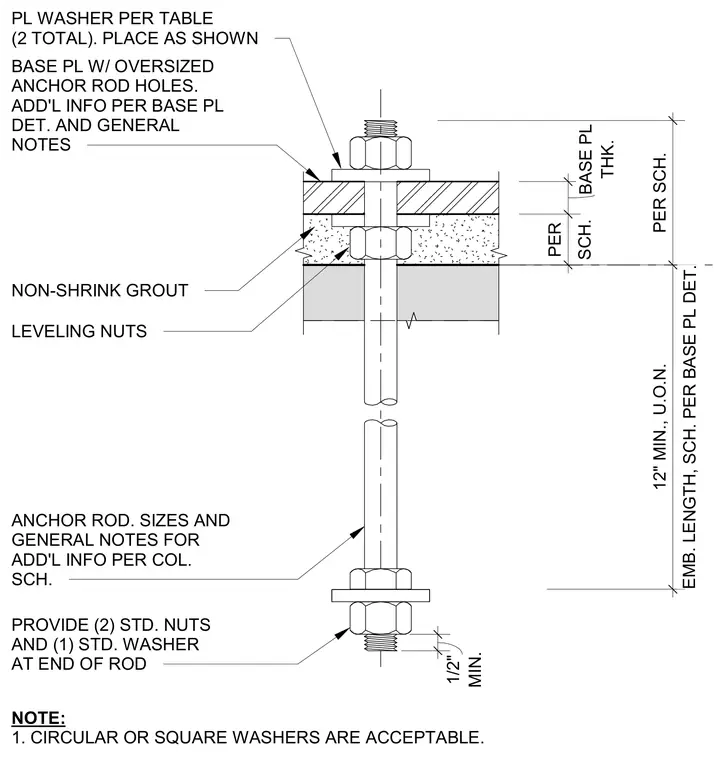

An anchor rod assembly features a steel base plate with oversized holes resting on a layer of non-shrink grout above a concrete support. Leveling nuts are positioned beneath the base plate, while two standard nuts and a plate washer secure the top of the plate. The threaded anchor rod extends downward with a minimum embedment length per schedule and includes two standard nuts and one standard washer at the bottom end. Circular or square washers are acceptable for the installation.
PROVIDE (2) STD. NUTS AND (1) STD. WASHER AT END OF ROD MIN. 1/2" ANCHOR ROD. SIZES AND GENERAL NOTES FOR ADD'L INFO PER COL. SCH. LEVELING NUTS NON-SHRINK GROUT BASE PL W/ OVERSIZED ANCHOR ROD HOLES. ADD'L INFO PER BASE PL DET. AND GENERAL NOTES PL WASHER PER TABLE (2 TOTAL). PLACE AS SHOWN EMB. LENGTH, SCH. PER BASE PL DET. 12" MIN., U.O.N. PER SCH. THK. BASE PL SCH. PER NOTE: 1. CIRCULAR OR SQUARE WASHERS ARE ACCEPTABLE.
