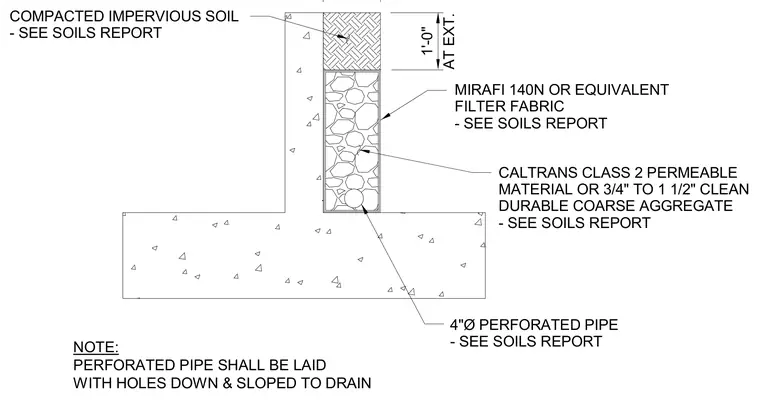

A 4-inch diameter perforated pipe is laid at the base of the foundation, oriented with holes down and sloped to drain. The pipe is embedded within Caltrans Class 2 permeable material or 3/4-inch to 1 1/2-inch clean durable coarse aggregate. Mirafi 140N or equivalent filter fabric lines the aggregate trench. A 1-foot depth of compacted impervious soil caps the top of the trench at the exterior.
NOTE: PERFORATED PIPE SHALL BE LAID WITH HOLES DOWN & SLOPED TO DRAIN 4"Ø PERFORATED PIPE - SEE SOILS REPORT CALTRANS CLASS 2 PERMEABLE MATERIAL OR 3/4" TO 1 1/2" CLEAN DURABLE COARSE AGGREGATE - SEE SOILS REPORT MIRAFI 140N OR EQUIVALENT FILTER FABRIC - SEE SOILS REPORT COMPACTED IMPERVIOUS SOIL - SEE SOILS REPORT 1'-0" AT EXT.
