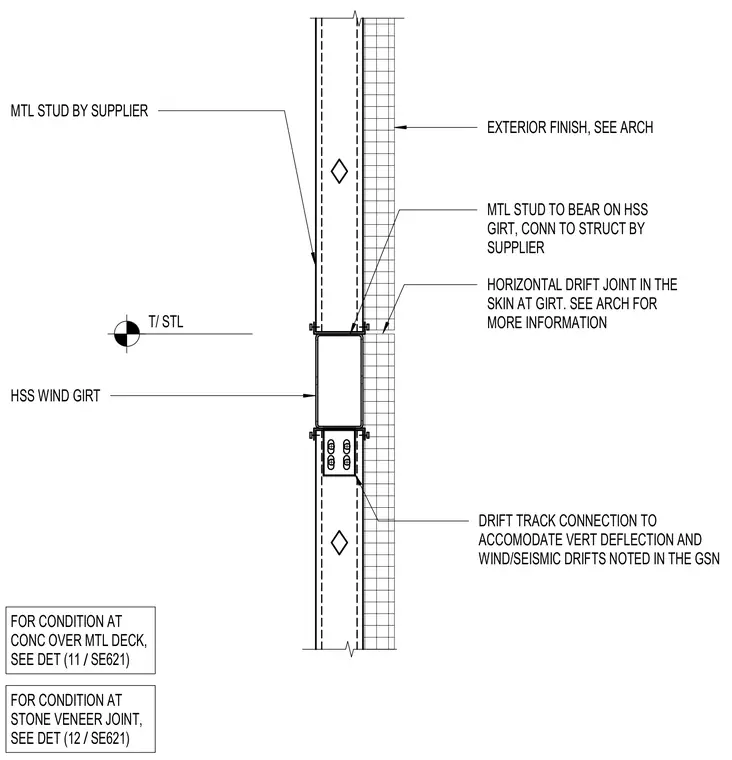

A hollow structural section wind girt supports metal stud framing by the supplier with an exterior finish coordinated with the architect. A drift track connection accommodates vertical deflection and wind or seismic drifts noted in the general structural notes. A horizontal drift joint is located in the skin at the girt level. The metal studs bear directly on the structural girt with connections provided by the supplier.
HSS WIND GIRT MTL STUD BY SUPPLIER EXTERIOR FINISH, SEE ARCH DRIFT TRACK CONNECTION TO ACCOMODATE VERT DEFLECTION AND WIND/SEISMIC DRIFTS NOTED IN THE GSN MTL STUD TO BEAR ON HSS GIRT, CONN TO STRUCT BY SUPPLIER T/ STL HORIZONTAL DRIFT JOINT IN THE SKIN AT GIRT. SEE ARCH FOR MORE INFORMATION FOR CONDITION AT CONC OVER MTL DECK, SEE DET / (11 SE621) FOR CONDITION AT STONE VENEER JOINT, SEE DET / (12 SE621)
