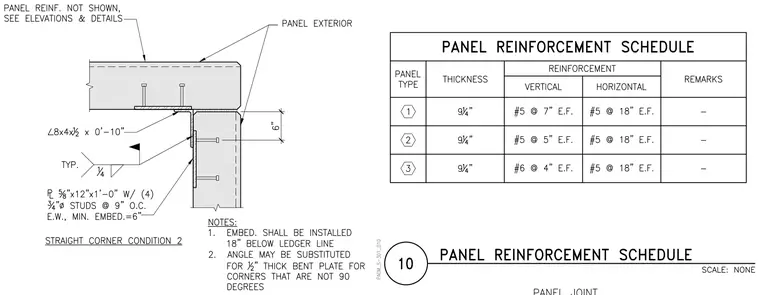

Precast concrete wall panels meet at a straight exterior corner supported by an embedded plate and an angle connection. A 5/8 inch by 12 inch by 1 foot 0 inch embedded plate with four 3/4 inch diameter studs at 9 inches on center each way and a minimum embedment of 6 inches anchors into the vertical panel. An L8x4x1/2 angle spanning 0 feet 10 inches is welded to the embedded plate with a 1/4 inch fillet weld. The horizontal panel bears on the assembly, while panel reinforcement is omitted from this view and referenced to elevations and details.
