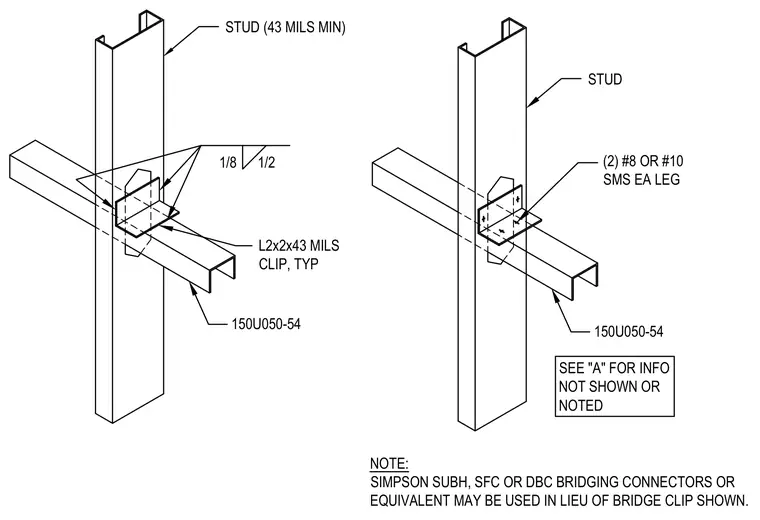

Cold-formed steel stud framing utilizes a 150U050-54 bridging member tied to a 43 mils minimum steel stud via an L2x2x43 mils clip. The connection is secured using two number 8 or number 10 sheet metal screws on each leg or via fillet welds sized at one-eighth and one-half inch per design. Simpson SUBH, SFC, or DBC bridging connectors or approved equivalents may be substituted for the specified clip.
150U050-54 L2x2x43 MILS CLIP, TYP (2) #8 OR #10 SMS EA LEG 1/8 1/2 STUD STUD (43 MILS MIN) NOTE: SIMPSON SUBH, SFC OR DBC BRIDGING CONNECTORS OR EQUIVALENT MAY BE USED IN LIEU OF BRIDGE CLIP SHOWN. 150U050-54 SEE "A" FOR INFO NOT SHOWN OR NOTED
