Structural · S-SV8K5

Cold-Formed Steel Infill Studs at HSS Posts

Materials

Elements

About this detail

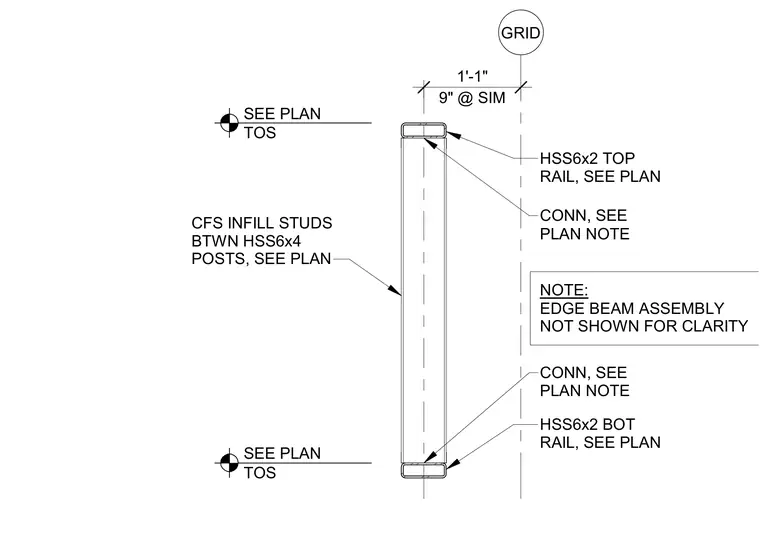

Cold-formed steel infill studs span between hollow structural section posts, bounded by an HSS 6x2 top rail and an HSS 6x2 bottom rail. Connections are sized per plan and referenced to grid lines, with the edge beam assembly omitted for clarity. Top of steel elevations are located per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
