HSS Post and Top Rail Connection at Roof Edge Beam

Materials

Steel

Elements

Columns Beams Roofs Decks

Connections

HSS Connection

About this detail

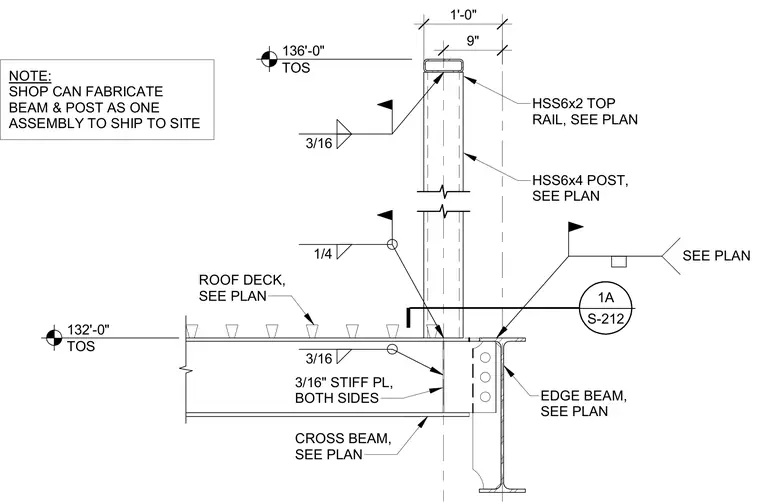

An HSS6x4 post supports an HSS6x2 top rail at the roof level, with a top of steel elevation of 136'-0" at the rail and 132'-0" at the roof deck. The post frames down to a cross beam that connects to an edge beam sized per plan. Three-sixteenths-inch stiffener plates are welded to both sides of the web of the cross beam with three-sixteenths-inch fillet welds. The shop can fabricate the beam and post as one assembly to ship to site.
