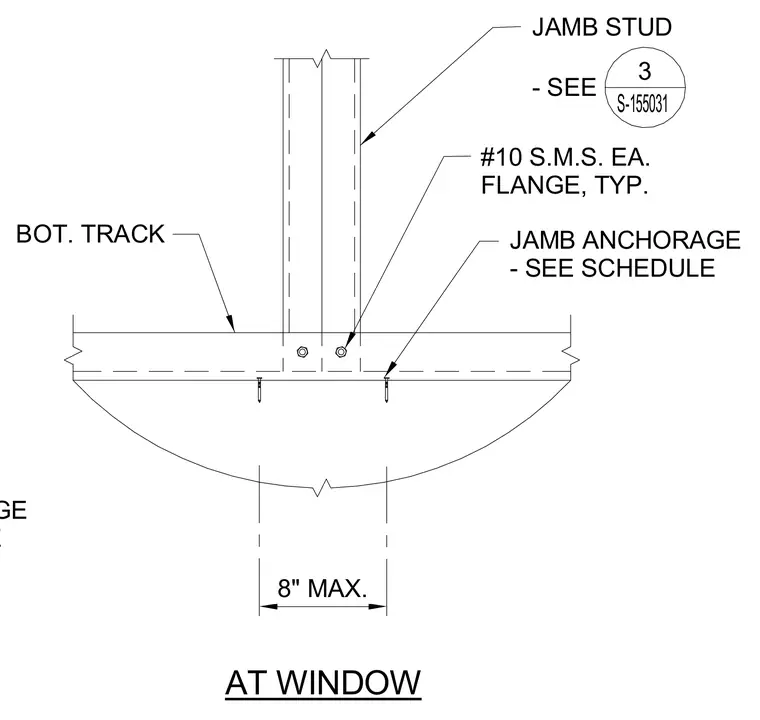

The jamb stud connects to the bottom track at the window opening using number ten sheet metal screws at each flange typical. Jamb anchorage is provided at a maximum spacing of eight inches per the schedule. The framing elements consist of cold-formed steel components.
AT WINDOW #10 S.M.S. EA. FLANGE, TYP. 8" MAX. JAMB ANCHORAGE - SEE SCHEDULE JAMB STUD - SEE S-155031 3 JAMB ANCHORAGE - SEE SCHEDULE BOT. TRACK
