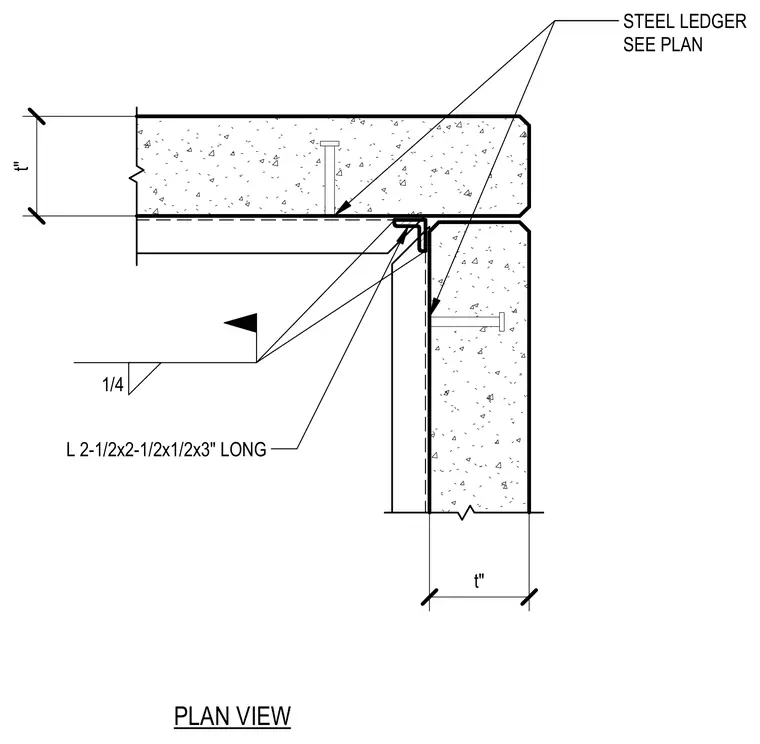

This structural plan detail shows a concrete wall panel corner joint tied together with a 2-1/2 by 2-1/2 by 1/2 inch steel angle ledger, three inches long, welded with a quarter-inch fillet weld as sized per plan. The steel ledger is anchored to the concrete panels.
