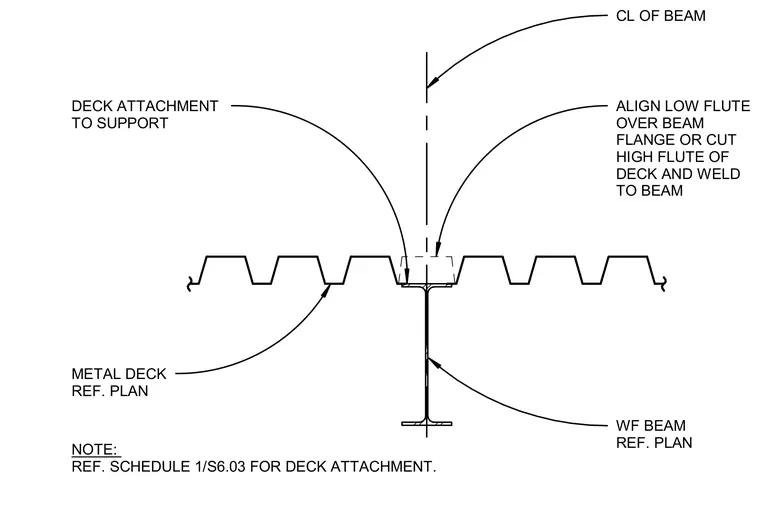

Corrugated metal roof deck bears directly across the top flange of a wide-flange steel beam. The low flute of the deck aligns over the beam flange, or the high flute is cut to allow direct welding of the deck to the beam. Deck attachment is executed in accordance with the structural engineering schedule.
METAL DECK REF. PLAN WF BEAM REF. PLAN ALIGN LOW FLUTE OVER BEAM FLANGE OR CUT HIGH FLUTE OF DECK AND WELD TO BEAM CL OF BEAM DECK ATTACHMENT TO SUPPORT NOTE: REF. SCHEDULE 1/S6.03 FOR DECK ATTACHMENT.
