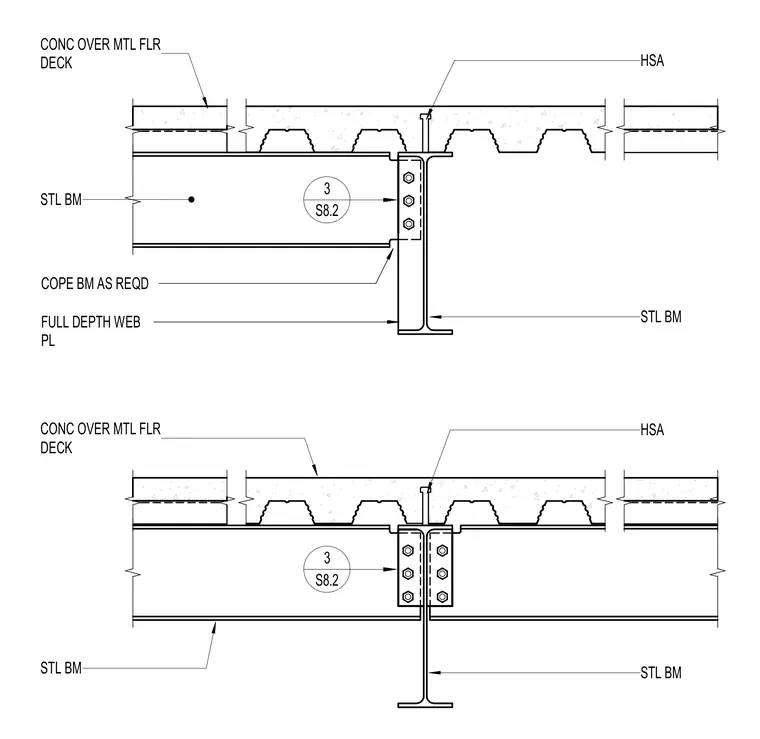

A steel beam frames into the web of a supporting steel beam beneath a concrete over metal floor deck. The framing beam features a coped top flange as required to clear the deck profile and connects using a full depth web plate with three bolts. Headed shear anchors are welded through the metal deck to the top flange of the supporting beam.
STL BM STL BM STL BM STL BM HSA HSA CONC OVER MTL FLR DECK CONC OVER MTL FLR DECK 3 S8.2 3 S8.2 COPE BM AS REQD FULL DEPTH WEB PL
