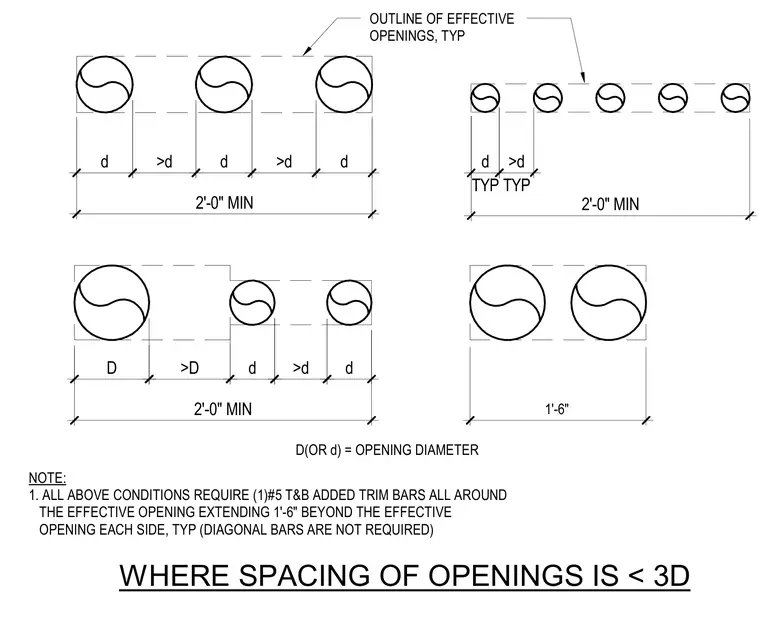

Where spacing of openings is less than three times the opening diameter, an effective opening outline encompasses the grouped voids. All conditions require one number five top and bottom added trim bar all around the effective opening, extending one foot six inches beyond the effective opening each side. Diagonal bars are not required for this configuration.
WHERE SPACING OF OPENINGS IS < 3D OUTLINE OF EFFECTIVE OPENINGS, TYP NOTE: 1. ALL ABOVE CONDITIONS REQUIRE (1)#5 T&B ADDED TRIM BARS ALL AROUND THE EFFECTIVE OPENING EXTENDING 1'-6" BEYOND THE EFFECTIVE OPENING EACH SIDE, TYP (DIAGONAL BARS ARE NOT REQUIRED) D(OR d) = OPENING DIAMETER d d >d >d d 2'-0" MIN TYP d TYP >d 2'-0" MIN D >D d >d d 2'-0" MIN . 1'-6"
