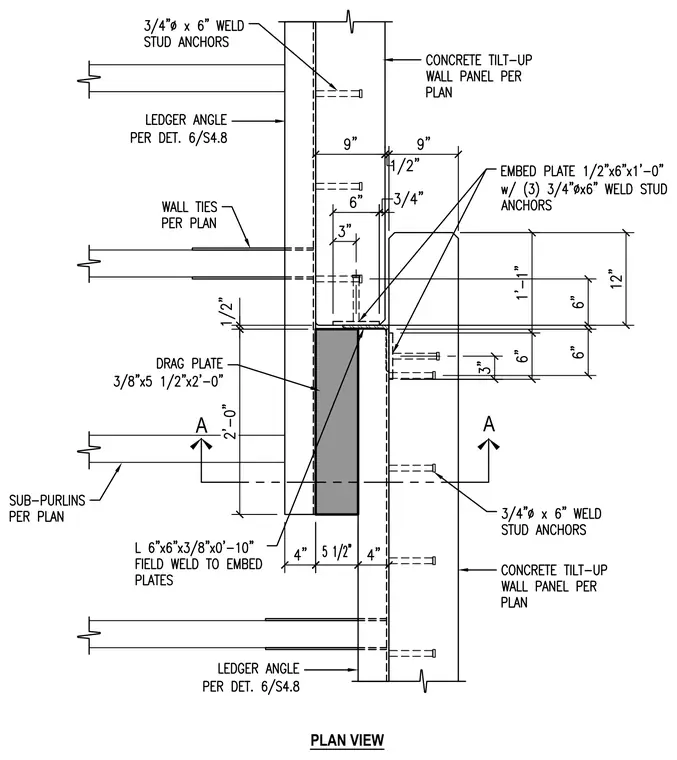

This structural plan view details the connection of concrete tilt-up wall panels tied together with a 3/8" x 5 1/2" x 2'-0" drag plate and 6"x6"x3/8"x0'-10" angles field welded to embed plates. The assembly incorporates 1/2" x 6" x 1'-0" embed plates anchored with three 3/4" diameter by 6" long weld stud anchors. Additional support is provided by ledger angles detailed per plan, sub-purlins, and wall ties. Dimensions and clearances are explicitly detailed throughout the connection interface.
