Structural · S-ST4CS

Bolted and Welded Gusset Plate Beam-To-Column Connections

Materials

weld

Elements

Connections / Plates

Connections

Gusset Plate Welded Connection Bolted Connection

About this detail

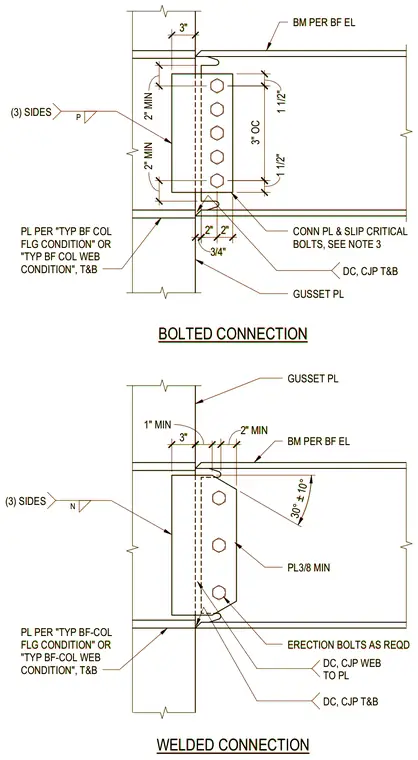

These structural steel details show moment-resisting beam-to-column connections featuring top and bottom gusset plates welded to the column flange or web. The bolted connection utilizes slip-critical bolts through a connection plate with a three-eighths inch minimum plate thickness and thirty-degree cut angles. The welded connection incorporates complete joint penetration welds at the top and bottom flanges and web, with three-inch minimum erection bolts provided as required. Fillet welds are applied on three sides with specified minimum edge clearances and dimensional spacings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
