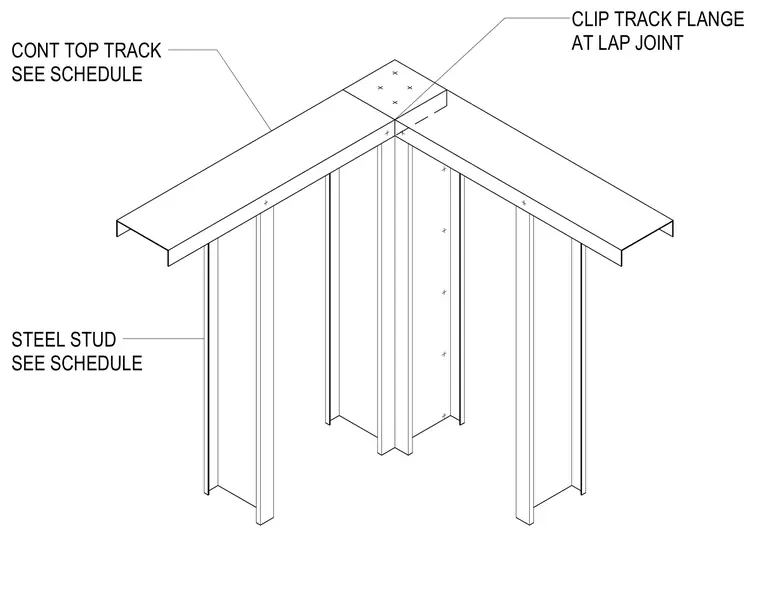

Cold-formed steel wall framing at a building corner features continuous top tracks sized per schedule with a nested clip track flange at the lap joint. Vertical steel studs sized per schedule intersect the top track assembly to form the corner junction. Fasteners secure the intersecting track flanges at the lap connection according to structural requirements.
STEEL STUD SEE SCHEDULE CLIP TRACK FLANGE AT LAP JOINT CONT TOP TRACK SEE SCHEDULE
