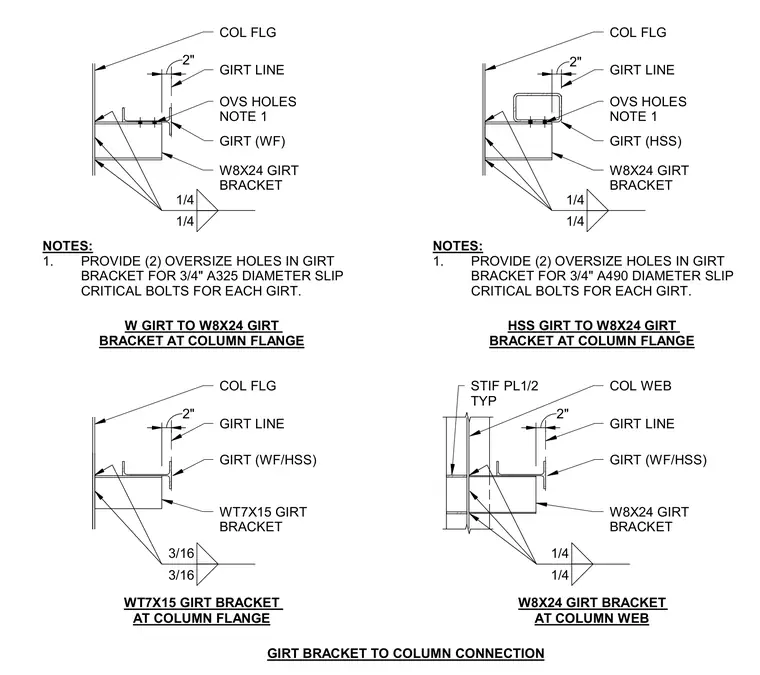

These connections detail structural steel girts attached to column flanges and webs using WT and wide-flange girt brackets. The brackets are welded to the supporting column with fillet welds sized at 3/16 inch or 1/4 inch, supplemented by typical 1/2-inch stiffener plates at the column web connection. Wide-flange or hollow structural section girts connect to the brackets using two oversize holes for 3/4-inch diameter A325 or A490 slip-critical bolts.
WT7X15 GIRT BRACKET WT7X15 GIRT BRACKET AT COLUMN FLANGE GIRT (WF/HSS) 3/16 3/16 W8X24 GIRT BRACKET COL WEB W8X24 GIRT BRACKET AT COLUMN WEB 1/4 1/4 STIF PL1/2 TYP W8X24 GIRT BRACKET GIRT LINE COL FLG W GIRT TO W8X24 GIRT BRACKET AT COLUMN FLANGE GIRT (WF) 1/4 1/4 2" OVS HOLES NOTE 1 NOTES: 1. PROVIDE (2) OVERSIZE HOLES IN GIRT BRACKET FOR 3/4" A325 DIAMETER SLIP CRITICAL BOLTS FOR EACH GIRT. W8X24 GIRT BRACKET GIRT LINE COL FLG HSS GIRT TO W8X24 GIRT BRACKET AT COLUMN FLANGE GIRT (HSS) 1/4 1/4 2" OVS HOLES NOTE 1 NOTES: 1. PROVIDE (2) OVERSIZE HOLES IN GIRT BRACKET FOR 3/4" A490 DIAMETER SLIP CRITICAL BOLTS FOR EACH GIRT. 2" GIRT LINE GIRT (WF/HSS) GIRT LINE 2" COL FLG GIRT BRACKET TO COLUMN CONNECTION
