Structural · S-SSY67

Standard Steel Beam Connection Details and Schedule

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Beam-to-Column Beam-to-Beam Welded Connection Bolted Connection

About this detail

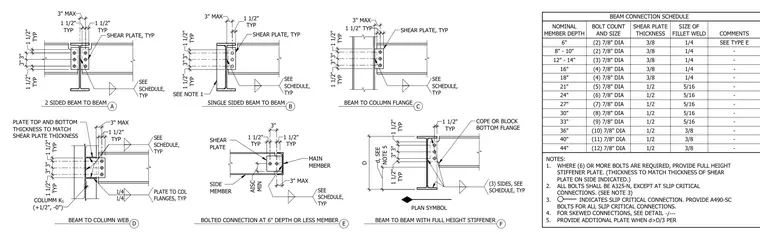

Steel framing connections feature typical shear plates welded to supporting members and bolted to supported beams with diameter and count sized per the beam connection schedule. Two-sided and single-sided beam-to-beam framing conditions utilize standard bolt spacings with fillet welds sized according to nominal member depth. Beam-to-column flange and web connections incorporate similar shear tabs with fillet welds attaching the plate to the support. Where six or more bolts are required, full-height stiffener plates matching the shear plate thickness are provided on the indicated side. Additional plates and top and bottom connection plates are added where specific depth criteria are met.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
