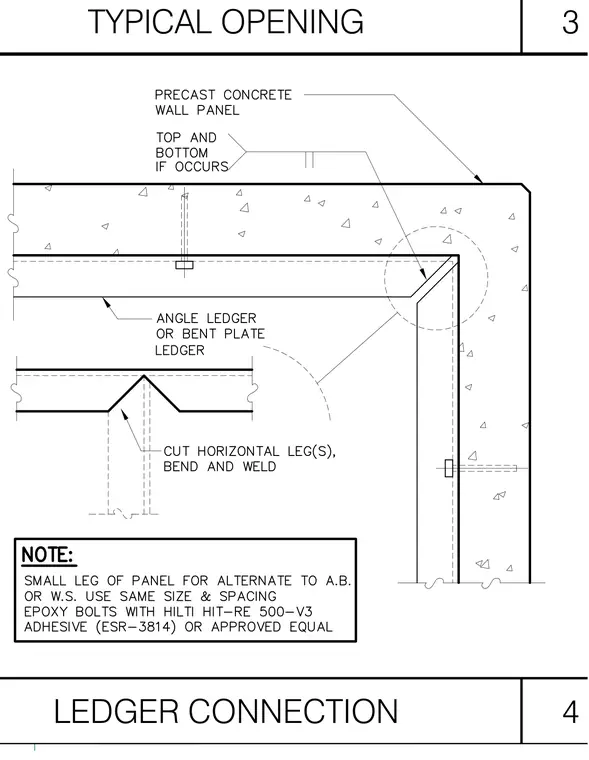

An angle ledger or bent plate ledger frames an opening in a precast concrete wall panel. The horizontal leg is cut, bent, and welded where it occurs at the top and bottom corners. Epoxy bolts with Hilti HIT-RE 500-V3 adhesive or an approved equal anchor the connection. Alternate anchorage requires using the same size and spacing as specified.
