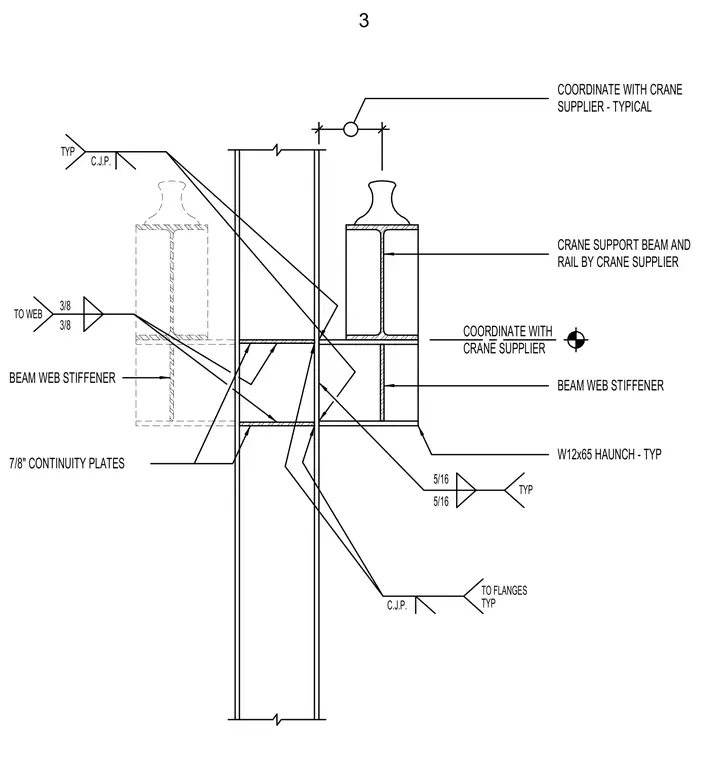

A crane support beam and rail are provided by the crane supplier and welded to a W12x65 haunch. The haunch connection features seven-eighths-inch continuity plates and beam web stiffeners welded with complete joint penetration welds at the flanges and three-eighth-inch fillet welds to the web. All alignments and coordinate locations are to be coordinated with the crane supplier.
CRANE SUPPORT BEAM AND RAIL BY CRANE SUPPLIER TO WEB 3/8 3/8 TYP C.J.P. TO FLANGES 5/16 5/16 TYP C.J.P. BEAM WEB STIFFENER TYP COORDINATE WITH CRANE SUPPLIER - TYPICAL COORDINATE WITH CRANE SUPPLIER 7/8" CONTINUITY PLATES W12x65 HAUNCH - TYP BEAM WEB STIFFENER 3
