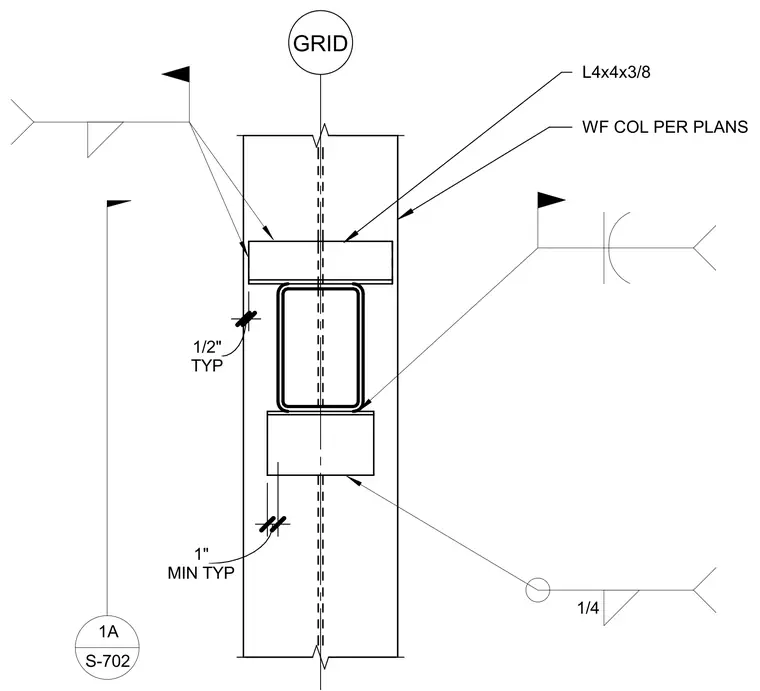

A hollow structural section member connects to a wide flange column flange sized per plans using welded angle supports. The connection utilizes L4x4x3/8 angles with typical fillet welds and a one-half inch typical gap. Additional detailing specifies one inch minimum typical clearance and field weld symbols.
