Cold-formed metal framing base track secures to the concrete slab using powder-actuated fasteners spaced at a maximum of sixteen inches on center with a minimum one-and-a-half-inch embedment. Stud ends bear directly on the track web maintaining a maximum one-eighth-inch gap for non-bearing wall conditions. Double jamb studs at the end of the wall connect to the track using number eight self-drilling screws on each side, matching the stud count in built-up configurations. Load-bearing shims or groups are provided between the underside of the wall bottom track and the support below at stud or joist locations whenever gaps exceed one-eighth inch.

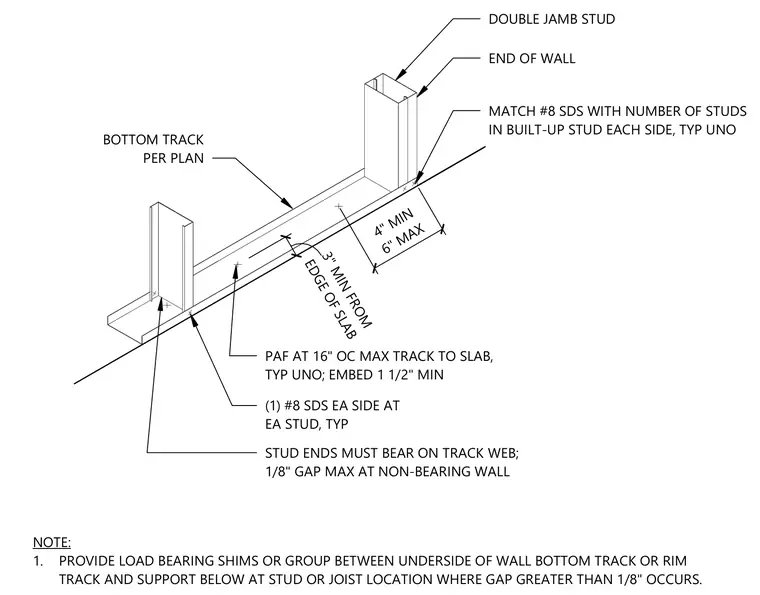

EDGE OF SLAB 3" MIN FROM NOTE: 1. PROVIDE LOAD BEARING SHIMS OR GROUP BETWEEN UNDERSIDE OF WALL BOTTOM TRACK OR RIM TRACK AND SUPPORT BELOW AT STUD OR JOIST LOCATION WHERE GAP GREATER THAN 1/8" OCCURS. MATCH #8 SDS WITH NUMBER OF STUDS IN BUILT-UP STUD EACH SIDE, TYP UNO 4" MIN 6" MAX PAF AT 16" OC MAX TRACK TO SLAB, TYP UNO; EMBED 1 1/2" MIN (1) #8 SDS EA SIDE AT EA STUD, TYP END OF WALL DOUBLE JAMB STUD BOTTOM TRACK PER PLAN STUD ENDS MUST BEAR ON TRACK WEB; 1/8" GAP MAX AT NON-BEARING WALL
