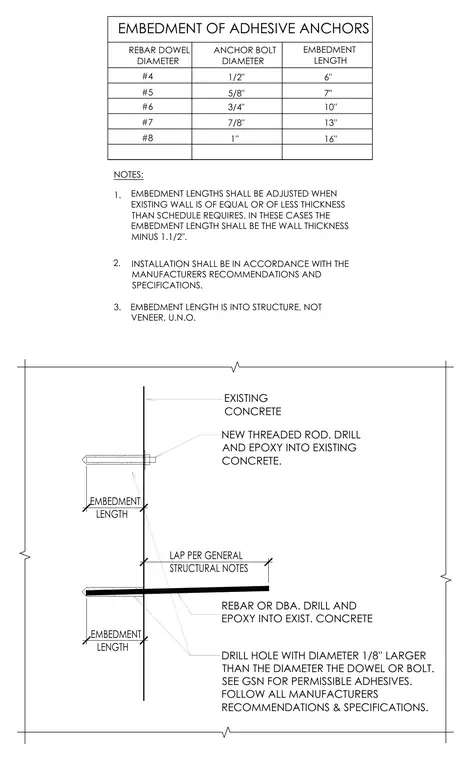

Adhesive anchor embedment into existing concrete utilizes new threaded rods and rebar dowels or deformed bar anchors. Holes are drilled one-eighth inch larger than the dowel or bolt diameter, with permissible adhesives specified in the general structural notes. Embedment lengths range from six inches for one-half inch diameter bolts up to sixteen inches for one-inch diameter bolts, and lengths must be adjusted to the wall thickness minus one and one-half inches when walls are thin. Embedment lengths are measured directly into the primary structure rather than any exterior veneer, unless noted otherwise.
STRUCTURAL NOTES LAP PER GENERAL EMBEDMENT LENGTH EMBEDMENT LENGTH 16'' #8 1'' 3. 2. 1. NOTES: EMBEDMENT OF ADHESIVE ANCHORS ANCHOR BOLT DIAMETER REBAR DOWEL #5 #7 #6 #4 DIAMETER EMBEDMENT 7" 13'' 10'' 6" LENGTH 7/8" 5/8" 3/4" 1/2" EXISTING CONCRETE NEW THREADED ROD. DRILL AND EPOXY INTO EXISTING CONCRETE. REBAR OR DBA. DRILL AND EPOXY INTO EXIST. CONCRETE DRILL HOLE WITH DIAMETER 1/8'' LARGER THAN THE DIAMETER THE DOWEL OR BOLT. SEE GSN FOR PERMISSIBLE ADHESIVES. FOLLOW ALL MANUFACTURERS RECOMMENDATIONS & SPECIFICATIONS. EMBEDMENT LENGTHS SHALL BE ADJUSTED WHEN EXISTING WALL IS OF EQUAL OR OF LESS THICKNESS THAN SCHEDULE REQUIRES. IN THESE CASES THE EMBEDMENT LENGTH SHALL BE THE WALL THICKNESS MINUS 1.1/2". INSTALLATION SHALL BE IN ACCORDANCE WITH THE MANUFACTURERS RECOMMENDATIONS AND SPECIFICATIONS. EMBEDMENT LENGTH IS INTO STRUCTURE, NOT VENEER, U.N.O.
