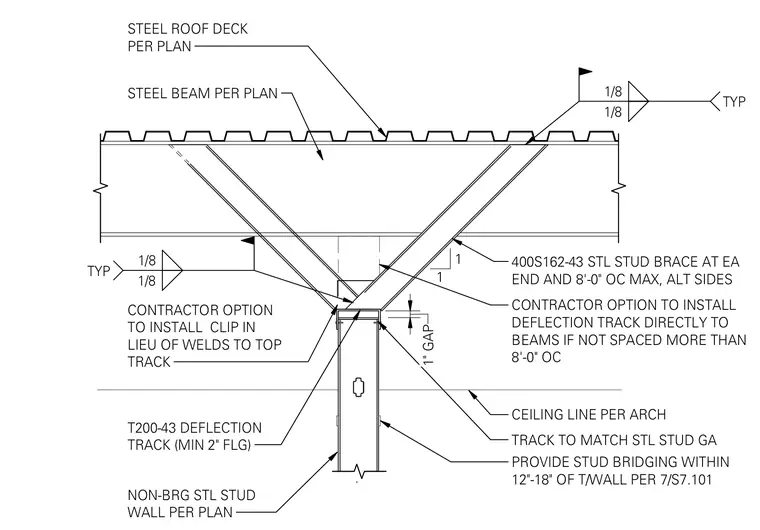

A non-bearing steel stud wall terminates below a steel roof beam with a one-inch gap and a T200-43 deflection track featuring a minimum two-inch flange. A 400S162-43 steel stud brace ties the wall to the roof beam at each end and eight feet on center maximum on alternating sides, welded with typical one-eighth inch fillet welds. Contractors have the option to install clips in lieu of welds to the top track or to install the deflection track directly to beams spaced no more than eight feet on center. Stud bridging is provided within twelve to eighteen inches of the top of the wall per structural details, matching the steel stud gauge. The ceiling line is positioned per architectural drawings.
NON-BRG STL STUD WALL PER PLAN 400S162-43 STL STUD BRACE AT EA END AND 8'-0" OC MAX, ALT SIDES STEEL ROOF DECK PER PLAN STEEL BEAM PER PLAN T200-43 DEFLECTION TRACK (MIN 2" FLG) 1 1 CEILING LINE PER ARCH CONTRACTOR OPTION TO INSTALL DEFLECTION TRACK DIRECTLY TO BEAMS IF NOT SPACED MORE THAN 8'-0" OC CONTRACTOR OPTION TO INSTALL CLIP IN LIEU OF WELDS TO TOP TRACK PROVIDE STUD BRIDGING WITHIN 12"-18" OF T/WALL PER TRACK TO MATCH STL STUD GA 1/8 1/8 TYP 1/8 1/8 TYP 1" GAP 7/S7.101
