Structural · S-SS2MK

Circular Concrete Column Sections with Spiral Reinforcement

Materials

About this detail

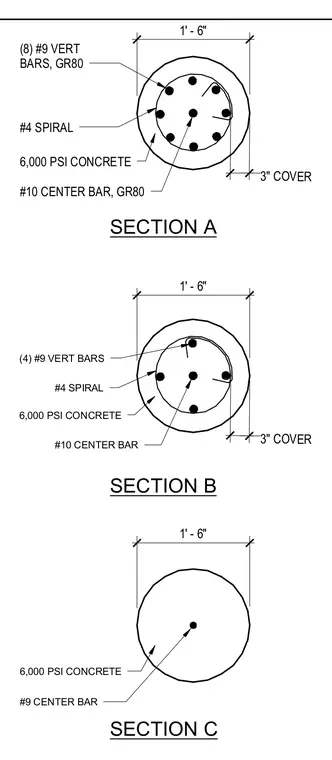

The assembly consists of a one-foot six-inch diameter circular concrete column cast with six thousand PSI concrete and a three-inch concrete cover. Section A contains eight grade 80 number nine vertical reinforcing bars, a number four spiral tie, and a grade 80 number ten center bar. Section B utilizes four number nine vertical bars with a number four spiral and a number ten center bar. Section C shows a plain circular concrete section reinforced only by a single number nine center bar.
