A vertical railing post formed by a channel member connects to a supporting steel beam and concrete slab edge. Two one-half-inch diameter ASTM A325 bolts secure the assembly in oversized holes. A three-eighths-inch stiffener plate is welded to the vertical picket at six feet on center maximum with quarter-inch fillet welds on four sides. Number four dowels conforming to ASTM A706 are embedded in the slab at twelve inches on center with five-eighths-inch clearance.

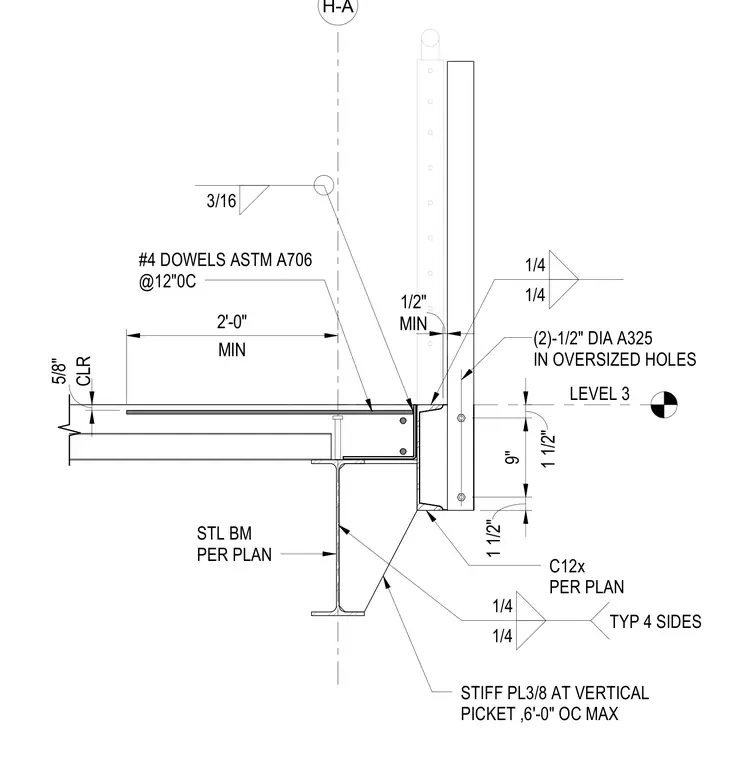

H-A LEVEL 3 CLR 5/8" #4 DOWELS ASTM A706 @12"0C STL BM PER PLAN C12x PER PLAN STIFF PL3/8 AT VERTICAL PICKET ,6'-0" OC MAX MIN 2'-0" 1/4 1/4 TYP 4 SIDES 1/4 1/4 3/16 1 1/2" 9" 1 1/2" MIN 1/2" (2)-1/2" DIA A325 IN OVERSIZED HOLES
