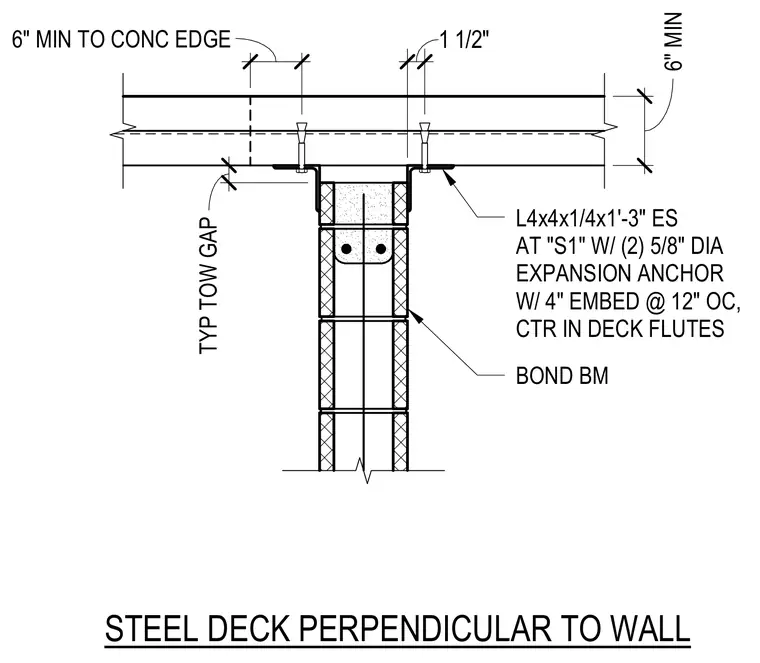

A structural steel deck runs perpendicular to a concrete masonry unit bond beam wall, tied together using a continuous 1-foot 3-inch long L4x4x1/4-inch angle. Each side of the connection is secured with two five-eighths-inch diameter expansion anchors featuring four-inch embedment spaced at twelve inches on center, centered in the deck flutes. A typical top of wall gap is maintained, and a minimum six-inch edge distance is provided to the concrete edge.
L4x4x1/4x1'-3" ES AT "S1" W/ (2) 5/8" DIA EXPANSION ANCHOR W/ 4" EMBED @ 12" OC, CTR IN DECK FLUTES BOND BM STEEL DECK PERPENDICULAR TO WALL 1 1/2" TYP TOW GAP 4 1/2" 6" 6" MIN 6" MIN TO CONC EDGE 1 1/2"
