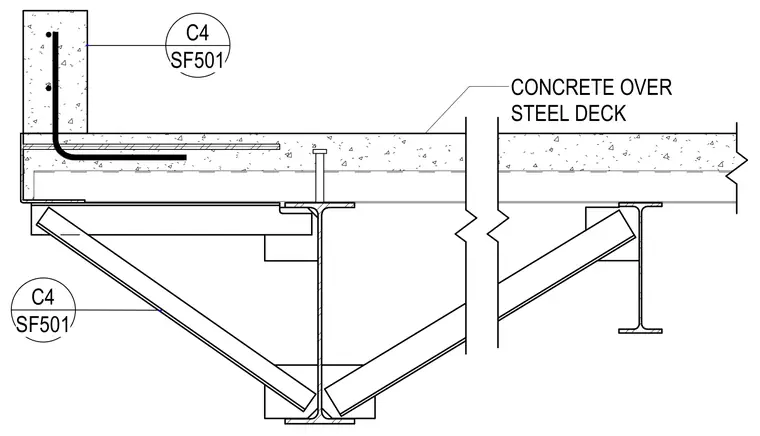

A concrete slab is poured over a profiled steel deck supported by structural steel beams and columns. Diagonal braces connect to the steel framing members below the floor plate. Reinforcing steel bars are embedded within a concrete curb or edge element at the perimeter.
