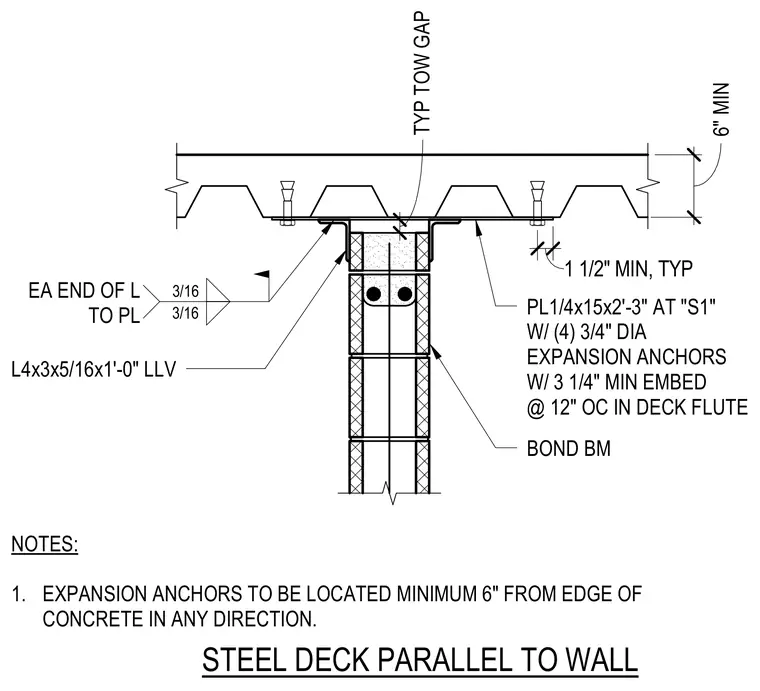

This connection details a steel deck running parallel to a masonry bond beam wall. A 1/4 inch thick by 15 inch wide by 2 feet 3 inch long embed plate is secured to the bond beam with four 3/4 inch diameter expansion anchors featuring a 3 1/4 inch minimum embedment at 12 inches on center in the deck flute. An L4x3x5/16 angle, 1 foot 0 inches long, is welded to the embed plate with 3/16 inch fillet welds at each end of the angle. A typical top of wall gap is maintained, and expansion anchors must be located a minimum of 6 inches from the edge of the concrete in any direction.
PL1/4x15x2'-3" AT "S1" W/ (4) 3/4" DIA EXPANSION ANCHORS W/ 3 1/4" MIN EMBED @ 12" OC IN DECK FLUTE BOND BM L4x3x5/16x1'-0" LLV EA END OF L TO PL 3/16 3/16 STEEL DECK PARALLEL TO WALL 1 1/2" MIN, TYP TYP TOW GAP 1 1/4" 6" 6" MIN NOTES: 1. EXPANSION ANCHORS TO BE LOCATED MINIMUM 6" FROM EDGE OF CONCRETE IN ANY DIRECTION.
