Structural · S-SRPGP

Typical Channel Chord Drag Detail

Materials

Steel

Elements

Beams Roofs Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

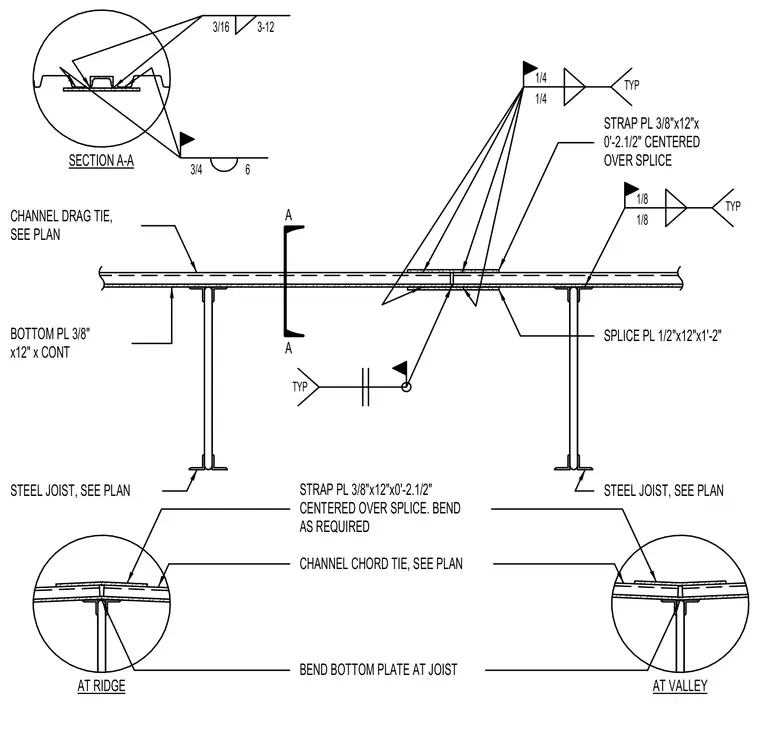

A channel chord drag tie connection is supported by steel joists. A continuous bottom plate measuring 3/8 inches by 12 inches runs beneath the assembly, while a splice plate measuring 1/2 inches by 12 inches by 1 foot 2 inches bridges the joint. Strap plates measuring 3/8 inches by 12 inches by 2-1/2 inches are centered over the splice and bent as required, welded with typical fillet welds ranging from 1/8 inch to 1/4 inch. Additional enlarged inset views show section A-A, ridge conditions, and valley conditions with specific weld callouts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
