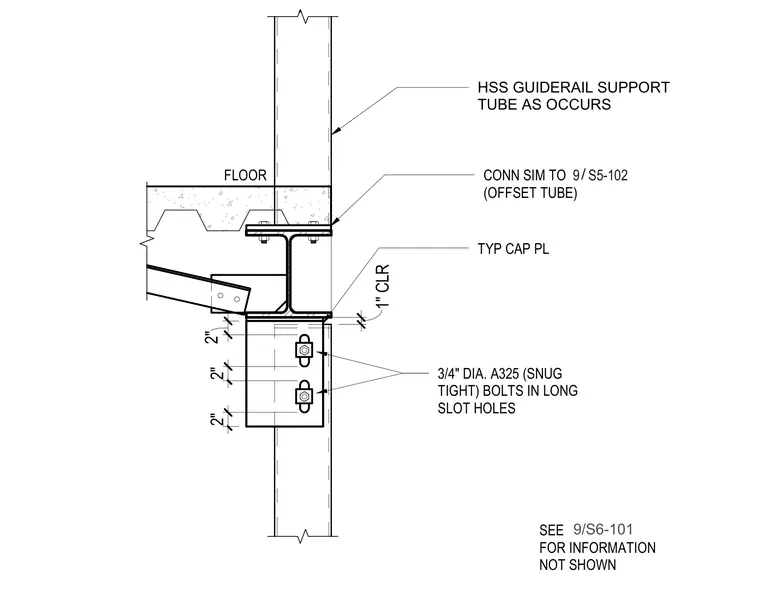

An elevator guiderail support tube is anchored to a structural steel beam below the concrete floor slab with a typical cap plate. The connection utilizes three three-quarter-inch diameter A325 snug tight bolts installed in long slot holes. A one-inch clearance is maintained at the structural connection. Additional offset tube connections are detailed similarly per structural plans.
FLOOR 2" 2" 2" 1" CLR TYP CAP PL CONN SIM TO (OFFSET TUBE) SEE FOR INFORMATION NOT SHOWN 9/S6-101 HSS GUIDERAIL SUPPORT TUBE AS OCCURS 3/4" DIA. A325 (SNUG TIGHT) BOLTS IN LONG SLOT HOLES / 9 S5-102
