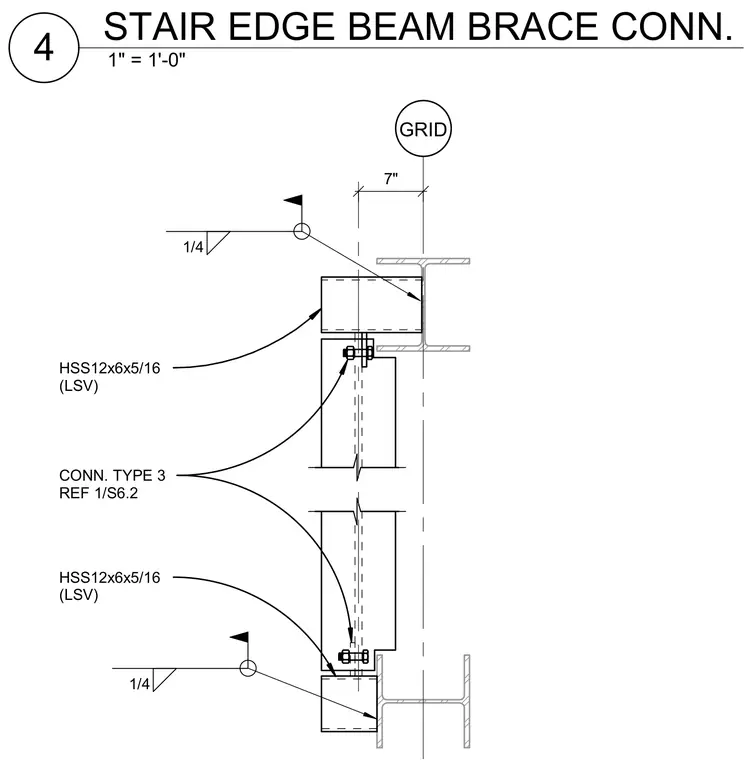

An HSS12x6x5/16 hollow structural section beam member connects to supporting structural steel framing using a connection type 3 reference detail. A one-quarter inch fillet weld attaches the assembly to the supporting member at a seven inch offset from the grid line. Additional bracing configurations are indicated per sheet reference 1/S6.2.
GRID 1/4 7" 1/4 CONN. TYPE 3 REF 1/S6.2 HSS12x6x5/16 (LSV) HSS12x6x5/16 (LSV) 1" = 1'-0" 4 STAIR EDGE BEAM BRACE CONN.
