Structural · S-SRMS9

Hanger Wire at Concrete Fill Over Metal Deck

Materials

Concrete Steel Glass / Glazing Metal (misc.)

Elements

Ceilings Decks Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

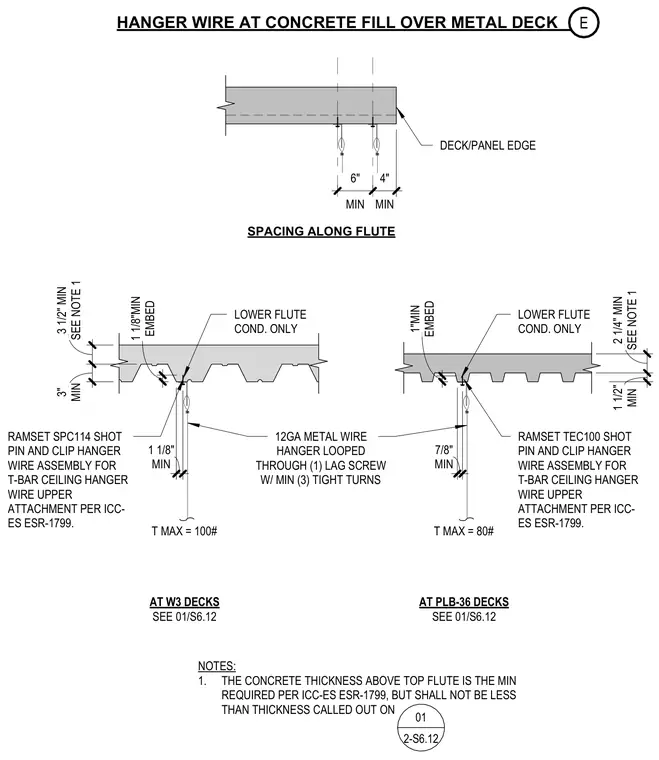

Upper attachment assembly for T-bar ceiling hanger wires anchored into concrete fill over composite metal decking. At W3 decks, twelve-gauge metal wire is looped through one lag screw with a minimum of three tight turns, maintaining a one-and-one-eighth-inch minimum embedment and a maximum tension load of one hundred pounds, with alternative attachment using a Ramset SPC114 shot pin and clip assembly per ICC-ES ESR-1799. At PLB-36 decks, the hanger wire assembly accommodates a maximum tension load of eighty pounds with a one-inch minimum embedment, or utilizes a Ramset TEC100 shot pin and clip assembly. Spacing along the flute requires a minimum distance of six inches and four inches at deck and panel edges. The concrete thickness above the top flute must satisfy ICC-ES ESR-1799 requirements while conforming to structural notes.
