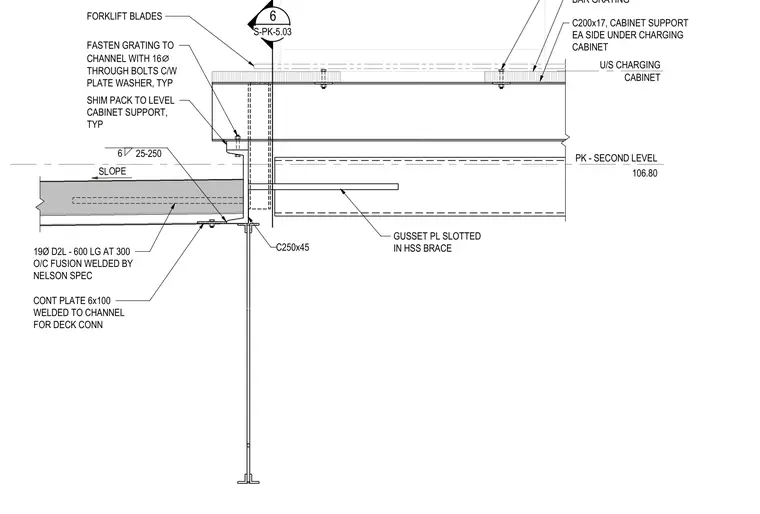

A C250x45 structural steel channel frames the second level floor at elevation 106.80, supporting bar grating via a continuous 6x100 plate welded to the channel for deck connection. A C200x17 channel cabinet support is located on each side under the charging cabinet, leveled with shim packs and fastened with sixteen-millimeter diameter through-bolts complete with plate washers. Nineteen-millimeter diameter by six-hundred-millimeter long D2L studs are fusion welded at three-hundred millimeters on center per Nelson specifications. A gusset plate slotted into a hollow structural section brace ties into the structural assembly.
PK - SECOND LEVEL 106.80 SHIM PACK TO LEVEL CABINET SUPPORT, TYP 19Ø D2L - 600 LG AT 300 O/C FUSION WELDED BY NELSON SPEC C200x17, CABINET SUPPORT EA SIDE UNDER CHARGING CABINET CONT PLATE 6x100 WELDED TO CHANNEL FOR DECK CONN C250x45 BAR GRATING U/S CHARGING CABINET FASTEN GRATING TO CHANNEL WITH 16 ⌀ THROUGH BOLTS C/W PLATE WASHER, TYP FORKLIFT BLADES 6 S-PK-5.03 6 25-250 GUSSET PL SLOTTED IN HSS BRACE
