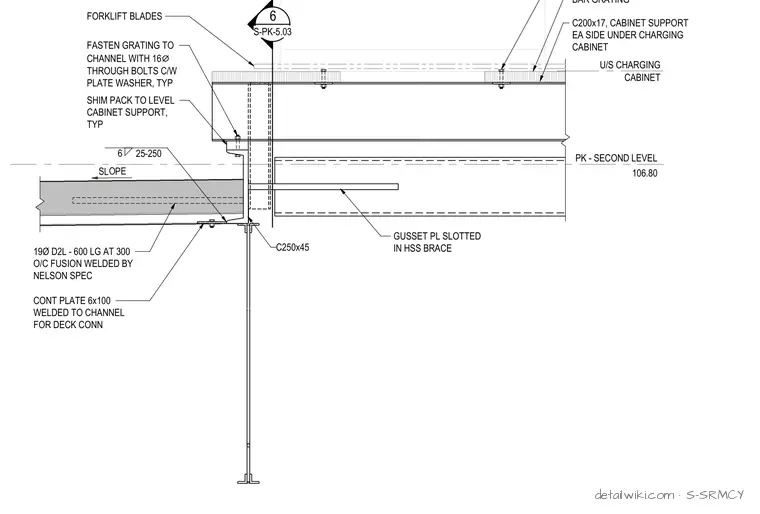

The detail illustrates a structural steel connection featuring a C250x45 channel, a slotted gusset plate within a hollow structural section brace, and bar grating attached with through-bolts and plate washers. It also includes cabinet supports made from C200x17 channels and a concrete slab with fusion-welded shear studs (19-diameter D2L studs at 300 mm on center) and continuous edge plates for deck connection. Shim packs are specified to level the cabinet support components.
Text on the drawing
PK - SECOND LEVEL 106.80 SHIM PACK TO LEVEL CABINET SUPPORT, TYP 19Ø D2L - 600 LG AT 300 O/C FUSION WELDED BY NELSON SPEC C200x17, CABINET SUPPORT EA SIDE UNDER CHARGING CABINET CONT PLATE 6x100 WELDED TO CHANNEL FOR DECK CONN C250x45 BAR GRATING U/S CHARGING CABINET FASTEN GRATING TO CHANNEL WITH 16 ⌀ THROUGH BOLTS C/W PLATE WASHER, TYP FORKLIFT BLADES 6 S-PK-5.03 6 25-250 GUSSET PL SLOTTED IN HSS BRACE
