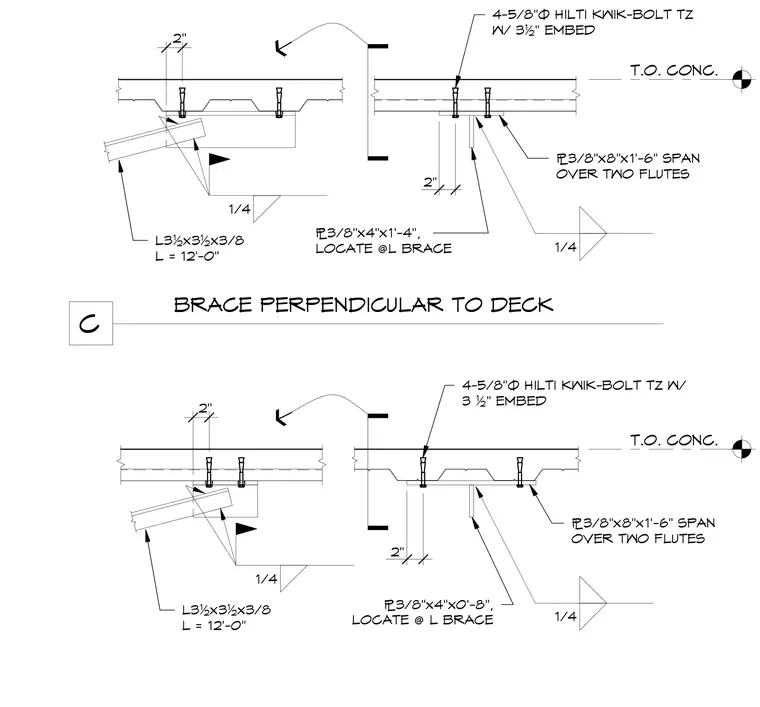

An angle brace measuring three and a half inches by three and a half inches by three-eighths of an inch and twelve feet long connects perpendicular to a concrete deck. The brace attaches via a three-eighths-inch by eight-inch by one-foot-six-inch plate spanning over two flutes, and a three-eighths-inch by four-inch plate of varying length located at the angle brace. Four five-eighths-inch-diameter Hilti Kwik-Bolt TZ expansion anchors with three and a half inches of embedment secure the assembly into the concrete above. Fillet welds of one-quarter-inch size join the steel elements together.
2" 2" 2" 2" BRACE PERPENDICULAR TO DECK ¯3/8"x8"x1'-6" SPAN OVER TWO FLUTES ¯3/8"x4"x1'-4", LOCATE @L BRACE 4-5/8"Ø HILTI KWIK-BOLT TZ W/ 3½" EMBED L3½x3½x3/8 L = 12'-0" ¯3/8"x8"x1'-6" SPAN OVER TWO FLUTES ¯3/8"x4"x0'-8", LOCATE @ L BRACE 4-5/8"Ø HILTI KWIK-BOLT TZ W/ 3 ½" EMBED C T.O. CONC. T.O. CONC. 1/4 1/4 1/4 L3½x3½x3/8 L = 12'-0" 1/4
