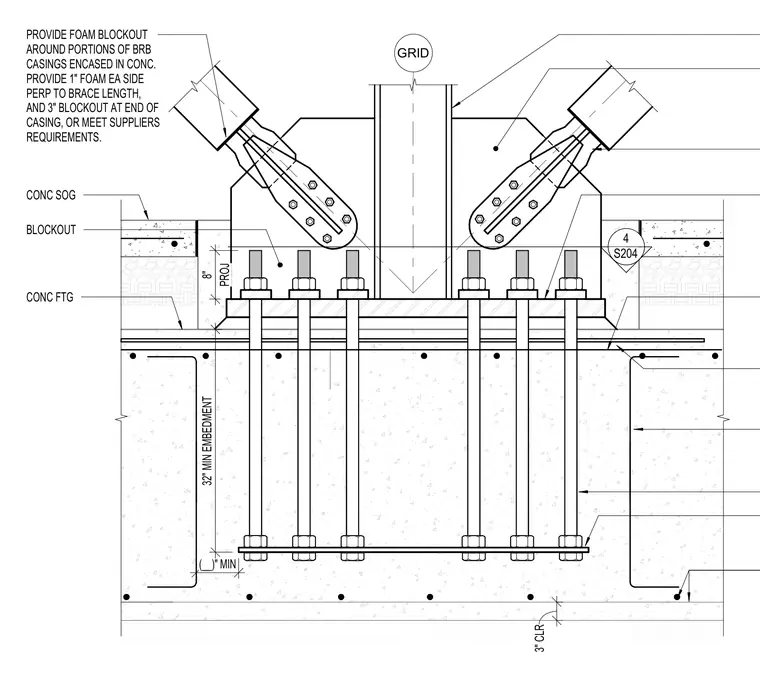

Buckling-restrained braces anchor into gusset plates welded to a heavy base plate supporting a roof center column. The base plate fastens to a concrete footing via multiple long anchor rods with a bottom template plate, achieving a minimum thirty-two-inch embedment and three-inch concrete clearance. Foam blockouts surround the brace casings encased in the concrete slab on grade, providing one inch of foam on each side perpendicular to the brace length and a three-inch blockout at the end of the casing.
CONC FTG BLOCKOUT CONC SOG 4 S204 3" CLR PROJ 8" (__)" MIN 32" MIN EMBEDMENT PROVIDE FOAM BLOCKOUT AROUND PORTIONS OF BRB CASINGS ENCASED IN CONC. PROVIDE 1" FOAM EA SIDE PERP TO BRACE LENGTH, AND 3" BLOCKOUT AT END OF CASING, OR MEET SUPPLIERS REQUIREMENTS. GRID
