HSS Beam Hanger and Pipe Post Foundation Detail

Materials

Steel Metal (misc.)

Elements

Columns Beams Floors / Slabs Decks Foundations / Footings Roof / Floor Openings

Connections

HSS Connection Welded Connection Deck Attachment

About this detail

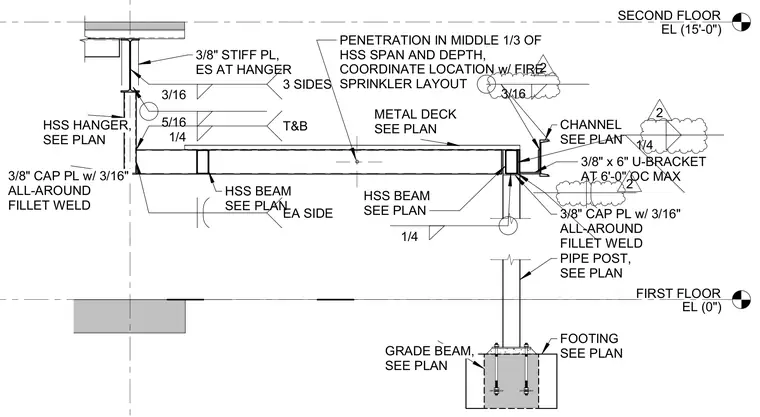

An HSS hanger suspends a steel beam framing system from an overhead structural member, stabilized with three-eighths-inch stiffener plates on each side welded with three-sixteenths-inch fillet welds on three sides. A three-eighths-inch cap plate is welded to the HSS beam with a three-sixteenths-inch all-around fillet weld, featuring a web penetration located within the middle third of the HSS span and depth. The opposite end of the HSS beam bears on a channel section attached via a three-eighths-inch by six-inch U-bracket at six feet on center maximum. Below, a pipe post anchors to a concrete grade beam and footing with embedded anchor bolts, while floor levels are marked at the first floor elevation zero and second floor elevation fifteen feet.
