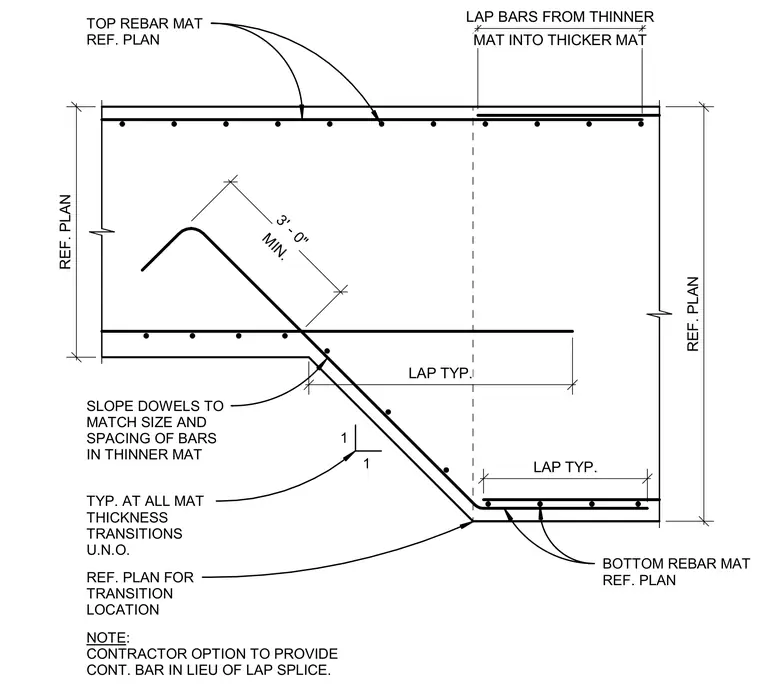

A reinforced concrete foundation mat transitions from a thinner section to a thicker section with a sloped profile. Top and bottom rebar mats continue across the transition per plan specifications. Dowels sized and spaced to match the thinner mat extend along the sloped transition with a minimum three-foot lap into the thicker mat. Lap splices are provided for continuity, with a contractor option to provide continuous bars in lieu of lap splices.
1 1 REF. PLAN REF. PLAN BOTTOM REBAR MAT REF. PLAN TYP. AT ALL MAT THICKNESS TRANSITIONS U.N.O. TOP REBAR MAT REF. PLAN NOTE: CONTRACTOR OPTION TO PROVIDE CONT. BAR IN LIEU OF LAP SPLICE. REF. PLAN FOR TRANSITION LOCATION LAP TYP. LAP TYP. MIN. 3' - 0" MAT INTO THICKER MAT LAP BARS FROM THINNER SLOPE DOWELS TO MATCH SIZE AND SPACING OF BARS IN THINNER MAT
