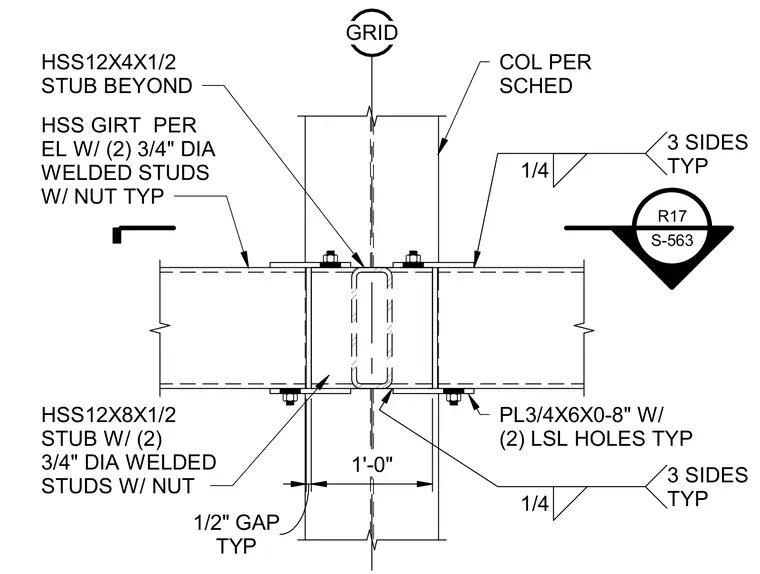

An HSS12x8x1/2 structural stub with two three-quarter-inch diameter welded studs with nuts connects to a steel column sized per schedule with a one-half-inch typical gap. An HSS12x4x1/2 stub extends beyond, featuring an HSS girt per elevation with two three-quarter-inch diameter welded studs with nuts typical. A three-quarter-inch by six-inch by zero-foot-eight-inch plate with two slotted holes typical ties the assembly together. One-quarter-inch fillet welds on three sides typical secure the plates.
GRID TYP 1/2" GAP 1'-0" HSS12X4X1/2 STUB BEYOND HSS GIRT PER EL W/ (2) 3/4" DIA WELDED STUDS W/ NUT TYP COL PER SCHED 1/4 3 SIDES TYP 1/4 3 SIDES TYP HSS12X8X1/2 STUB W/ (2) 3/4" DIA WELDED STUDS W/ NUT PL3/4X6X0-8" W/ (2) LSL HOLES TYP R17 S-563
