Structural · S-SR79P

Post-Tensioned Slab Reinforcement at Edge Column and Opening

Materials

Elements

Columns Walls Floors / Slabs Reinforcing

About this detail

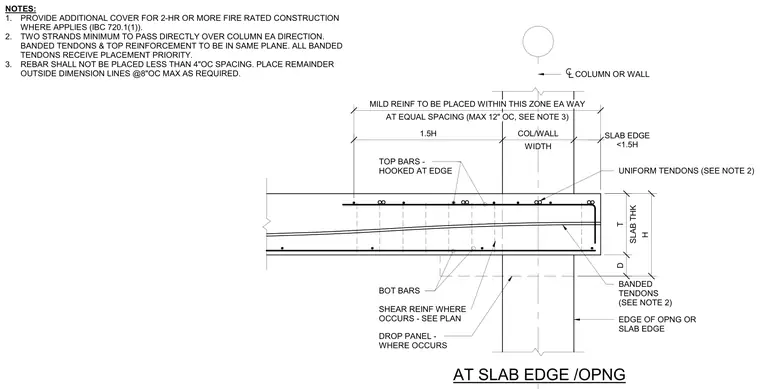

Post-tensioned concrete slab reinforcement detail showing banded and uniform tendons, top and bottom mild reinforcing bars, drop panel, and shear reinforcement at a slab edge or opening. Two strands minimum pass directly over the column in each direction, with banded tendons and top reinforcement maintained in the same plane and receiving placement priority. Mild reinforcing bars are placed within the designated zone at a maximum spacing of twelve inches on center, with rebar spacing not less than four inches on center. Top and bottom bars are hooked at the edge column, wall edge, opening edge, or slab edge. Drop panels are included where required, with shear reinforcement placed as specified per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
